Page 4 - Benchmark: AIDA64 FPU
About AIDA64 Engineer
AIDA64 Engineer has a hardware detection engine unrivaled in its class. It provides detailed information about installed software and offers diagnostic functions and support for overclocking. As it is monitoring sensors in real time, it can gather accurate voltage, temperature and fan speed readings, while its diagnostic functions help detect and prevent hardware issues. It also offers a couple of benchmarks for measuring the performance of individual hardware components or the whole system. It is compatible with all 32-bit and 64-bit Windows editions, including Windows 10 and Windows Server 2016.
From: Developer's Page

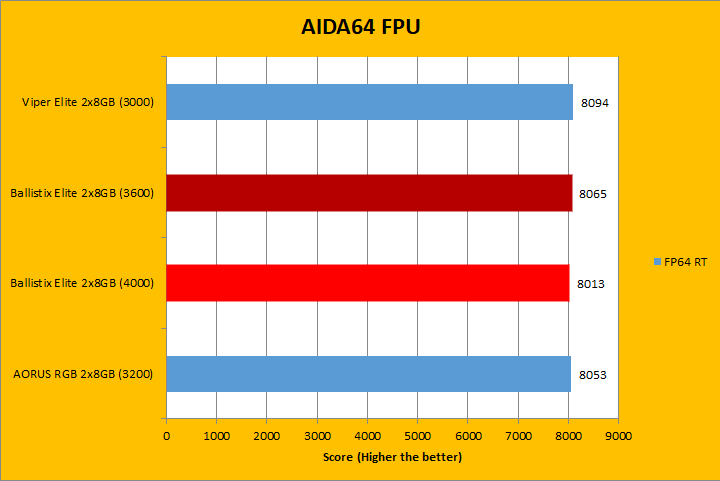

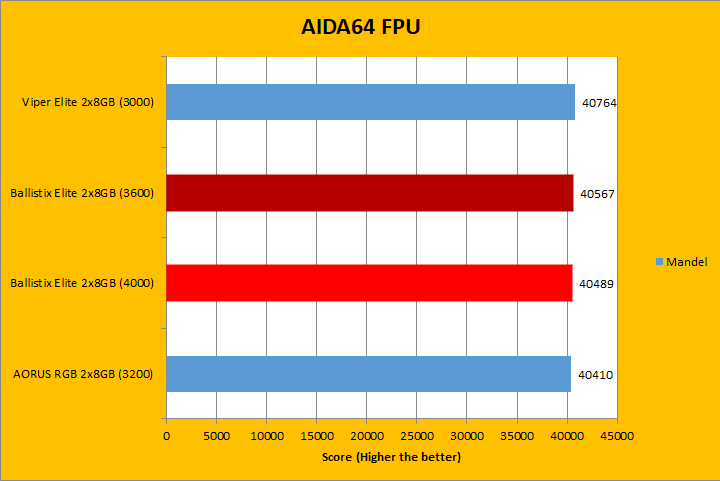

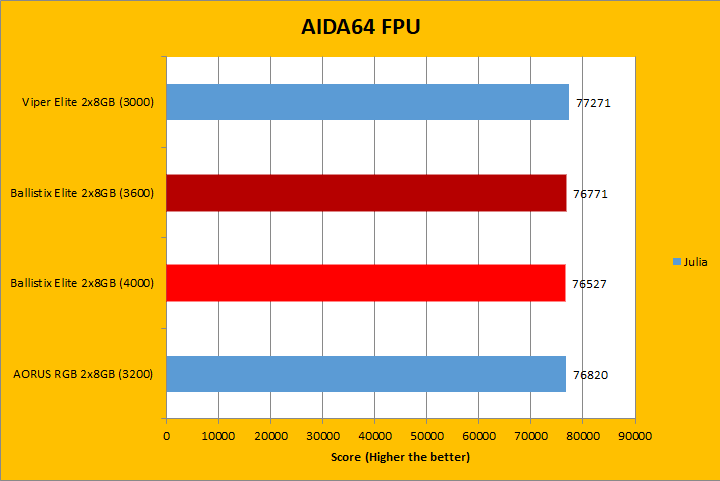

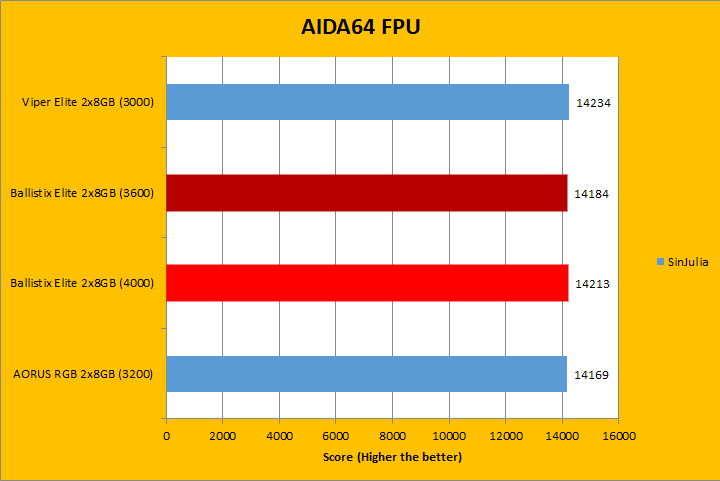

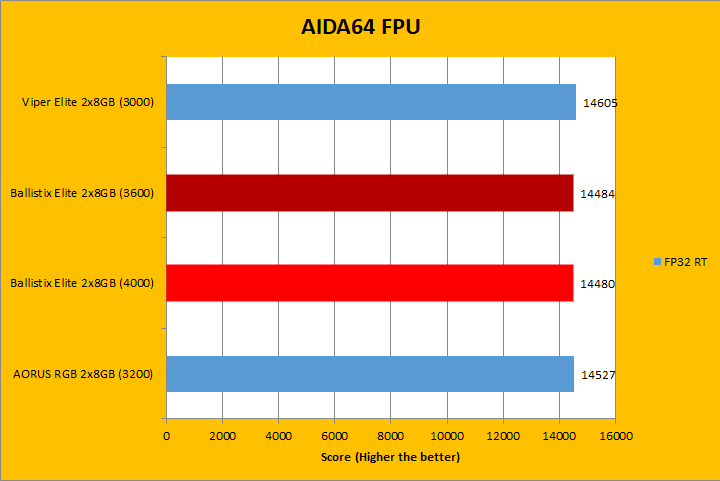

The next tests we have are AIDA64's FPU benchmarks, which are usually the least exciting of all when writing a RAM review. This is because the results obtained are generally more dependent on the tested processor. The outcome of these results is almost irrelevant to the speed or latencies of the installed memory modules. As you can see in our graphs above, all the results were within one percent of each other. As for the Ballistix Elite DDR4-4000 2x8GB dual channel kit, it scored in the middle for most of the tests besides the two ray-tracing results. At the end of the day, they were all within the same ballpark as each other, so these differences do not really mean much.
