Page 2 - Physical Look - Outside

When I reviewed the Fractal Design Define R4 in October last year, the changes were obvious -- at least to a discerning user to the brand. The Define XL R2, on the other hand, is practically identical to the original Define XL at first glance. Depending on how you would like to interpret of what we call a 'clean and simple design', I have always appreciated the approach Fractal Design takes. The company calls this a "minimalistic and stunning Scandinavian design" (Probably inspired by a fridge), but it is still extremely appealing to people like yours truly, who takes great interest in exemplary clean looks. After all, I have never been a big fan of having an alien face on my desk; it is no longer 2001, haha. If the design of a fundamentally clean case (Read: The entire front is a completely blank door, with a brushed texture to enhance its looks) combined with an intrinsic attention to detail and emphasis on silence, our Black Pearl Define XL R2 provides me a striking reminder both in philosophy and implementation to the old school Antec P182 I have reviewed nearly six years ago. The difference is, while Antec has their logo embedded at the top right corner of the door, Fractal Design leaves the user the choice of finding your own Maytag, Whirlpool, or GE badge. Fact is, you just won't find Fractal Design's logo anywhere on the entire product, just like all their other products we have reviewed in the past.

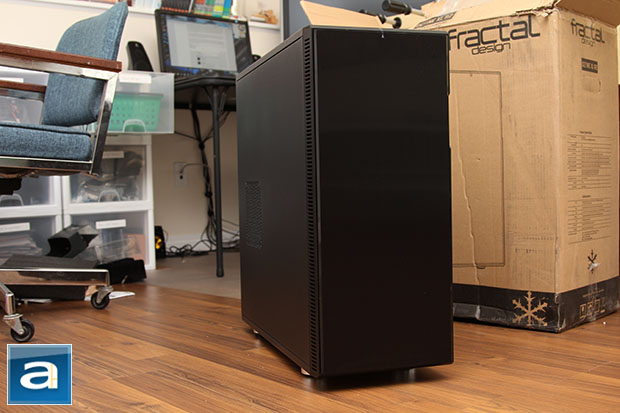

A quick glance at the left side panel reveals an opening for a 140mm fan. This is no different than its predecessor. Fractal Design calls this the "ModuVent". Why such a fancy name for a simple fan opening? The answer is simple. The opening is sealed off with sound absorbing material by default. This provides an advantage in preventing dust from entering your system, and noise from exiting your system. If you ever decide to install an intake fan in this area, you can easily remove the material that seals off this vent. Quite a nice touch in my opinion. Other than that, the right side panel is completely blank. There is no option for a side window, even if you want to forgo some sound absorbing material. Even as a hardcore silent PC enthusiast, I honestly wouldn't mind. All my components are quiet out of the box anyway.

Measuring in at 232mm width, 559mm height, and 560mm depth, the Fractal Design Define XL R2's dimensions is virtually identical to the original Define XL. Actually, it is probably within manufacturing tolerance of it -- its older brother's figures come in at 232mm width, 560mm height, and 561.3mm depth, haha. It tips the scales at 36.08lbs, which, again, is quite a bit heftier than the competition. The reason for its increased weight is because quiet computer cases are built with more sound insulation materials and other miscellaneous item.

Opening the magnetically held shut front door reveals the usual things we are used to seeing in a standard computer case. However, before we start talking about that, let me just point out the direction the door swings cannot be changed. It only swings clockwise, and that is quite a bummer. While it is true most of us rarely access optical drives anymore, I would still like to see a little more flexibility in this area. Actually, I think many of us place our computers on our right, so I think it makes more sense if the door swings counterclockwise instead. With that in mind, it is quite rare for me to use my optical drive anyway, so it has never been a big issue for my day-to-day usage.

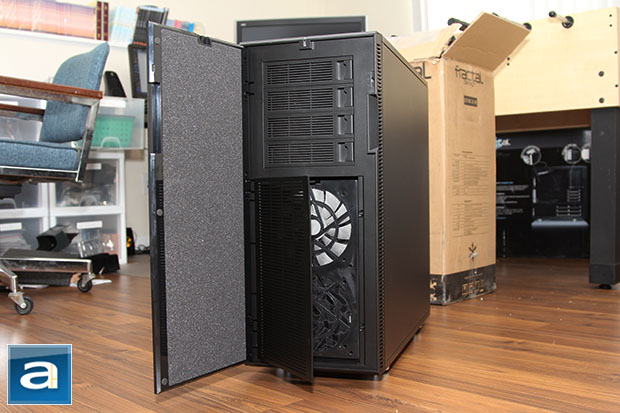

Moving on, from the top we have four 5.25" openings for optical drives and other case accessories such as fan controllers. Of course, unless you are up to something sophisticated, it is probably not necessary, because the Define XL R2 already has one built in. A 3.5" drive bay converter is no longer included. Four of these drive bays should be more than sufficient for most users out there. Under it is a secondary push-lock door hiding space used to accommodate up to two 120mm or 140mm fans; one of which -- a Silent Series R2 140mm -- is included from the factory. The stock fan is white in color. Washable dust filters are placed in front of each and every included and optional fan. I really like that. A built in three-speed fan controller switch is in place where the reset button is used to be; labeled 5V, 7V, and 12V, and can control up to three fans. I think the switch feels a bit cheap and out of place for a case of this class. Last but not least, as shown in our photo above, a layer of sound absorbing material is installed behind the door, used to dampen the sound emitted from the front fans.

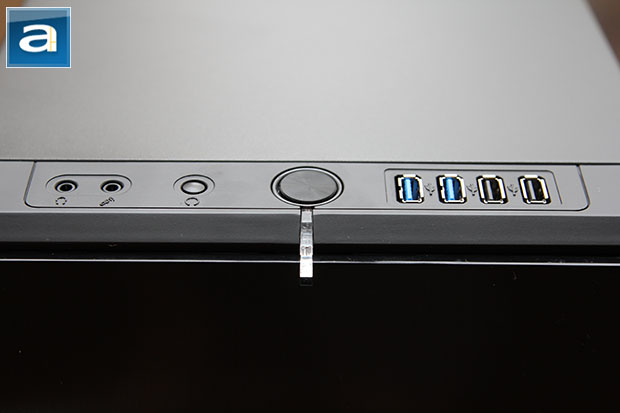

Rather than setting the front panel connectors behind the door, Fractal Design made a wise choice in putting them at the top of the Define XL R2, just like their past products. The Define XL R2's layout configuration is revised to be identical to the Define R4. With its power button placed nice and center, the designers managed to create a level of symmetry in an asymmetric fashion. On the right side of the power button, we have two USB 3.0 ports and two USB 2.0 ports. It was a wise move to ditch eSATA from the original XL in my personal opinion, since having four USB ports is probably much more practical. On the left side of the power button, we have two 3.5mm audio jacks for microphone in and headphone out, as well as the relocated reset button. I think it was better to have the reset button behind the front door, but at least it is still hard to press accidentally. Surrounding the power button is a stylish blue LED ring that dips down at the front for maximum visibility and aesthetic appeal. Notably missing from today's party is the hard drive indicator LED as always, which is nowhere to be found.

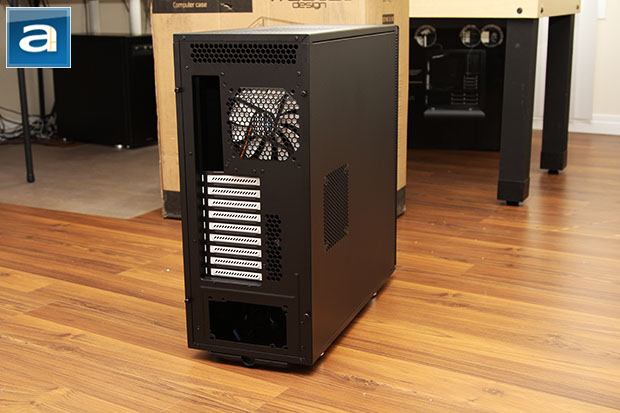

Painted black to match the rest of the chassis, the back of Fractal Design's Define XL R2 is pretty much standard for a case with a bottom mounted power supply bay. We can expectantly spot an included white colored Silent Series R2 140mm fan placed adjacent to the motherboard I/O backplate; same as its older brother. Much to our surprise, there are no radiator pipe openings. Both side panels are held closed by two thumbscrews each, and pop right out without sliding clips at the top and bottom. The ventilated plates enclosing the nine expansion card slots -- up two from a couple of years ago -- are painted white, as shown in our photo above. The vertical slot for stuff like aftermarket LED lighting control is now gone, along with the unique angled 180mm fan with rear exhaust from the original Define XL, which we will talk about in just a moment. The rear handle of the washable fan filter for the power supply can be seen in our photo above, which can be pulled out for easy cleaning.

Shifting our focus a little bit, there are elements that make the Fractal Design Define XL R2 quite unique. Traditionally, case designers install top mounted fans to efficiently draw heat away from the processor. This makes a lot of sense, since heat rises, so we are only adhering to the natural laws of physics. Unfortunately, this is a two way street, as it is also very easy to get a lot of dust in the system that way when it is turned off. I am not a big fan of such a design, and I really dislike it when manufacturers force me to use that opening. Therefore, to rectify this problem, the Define XL, in the past, had an angled top fan as aforementioned, which pushes out the heat through a rear exhaust vent. Unfortunately, the angled fan may interfere with larger CPU coolers, which is probably why they decided to go with the approach seen in the Define R3 and R4. This means the user an option to choose what they want. Want silence and no maintenance? Leave the ModuVent covers on. Want more airflow? Take one or both of them off in any order, and you can install up to two 120mm or 140mm fans. It can support 240/280mm slim radiators in this location according to the manufacturer. It is that simple. Why can't more manufacturers learn from Fractal Design?

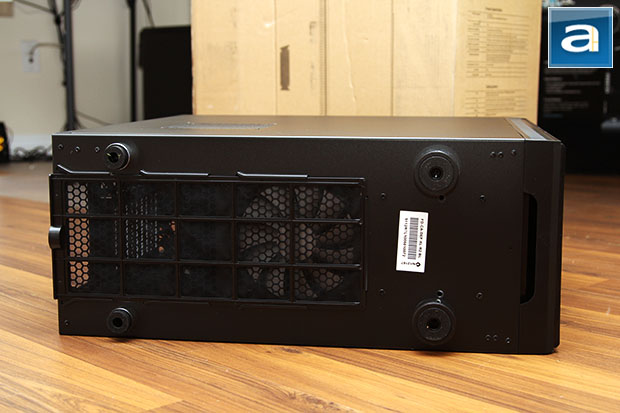

Shiny legs with rubber bottom resembling those commonly found on home electronics can be seen on the Fractal Design Define XL R2. The front legs are larger than the rear legs, because they will need to leave some space for the power supply fan filter, as shown in our photo above. The legs provide the chassis about 1.5 cm rise over the surface it resides on. A 140mm Silent Series R2 fan is pre-installed from out of the box at the bottom, with an externally mounted fan filter that extends to the power supply area as well (The Define XL did not come with any bottom mounted fans). It slides out the back for easy cleaning.

To summarize, what is the difference between the Define XL and Define XL R2 externally? The front I/O panel has been revised with the removal of the eSATA port for a reset button. Two USB 2.0 ports are swapped for two USB 3.0 ports. A three speed fan controller is now integrated, with the switch placed in the location of where the reset button used to be. At the back, we have two more expansion card slots for a total of nine, but the non-standard vertical opening is gone. A bottom 140mm fan is installed for air intake. Lastly, the Define XL's top 180mm fan with rear ventilation design is deleted in favor of two ModuVent top openings in the XL R2.

Overall, the Fractal Design Define XL R2 ATX case is one of the most solid cases I have seen with regards to build quality. All the panels fit together extremely well with minimal panel gaps -- in fact, it is pretty darn close to perfection in refinement. With that out of the way, nothing feels flimsy or cheap. Sharp edges are out of the question. The amount of attention to detail is very noticeable, just as we have come to expect from the company. Admittedly, the Fractal Design Define XL R2 is a bit on the heavy side, but quality and sound insulation material comes at a price. You will see why in the next page.
