Gigabyte Radeon HD 6870 1GB SOC Review (Page 11 of 13)

Page 11 - Benchmark: Unigine: Heaven v2.5

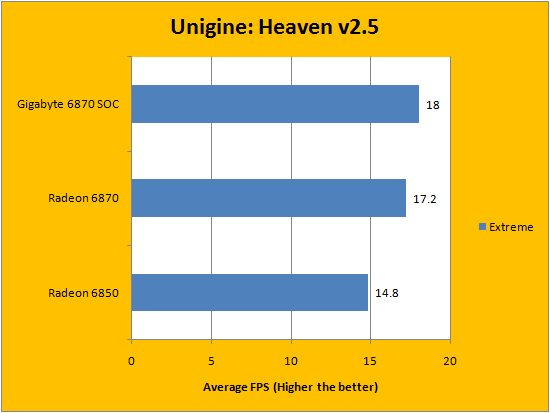

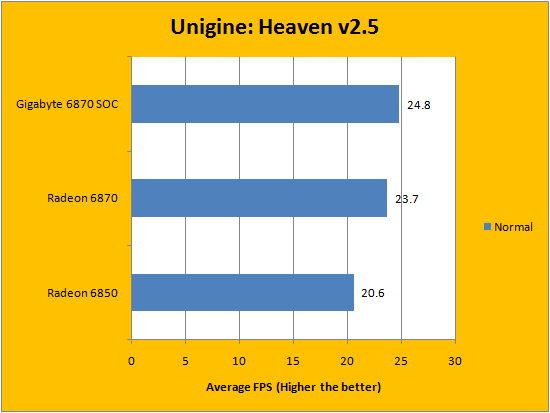

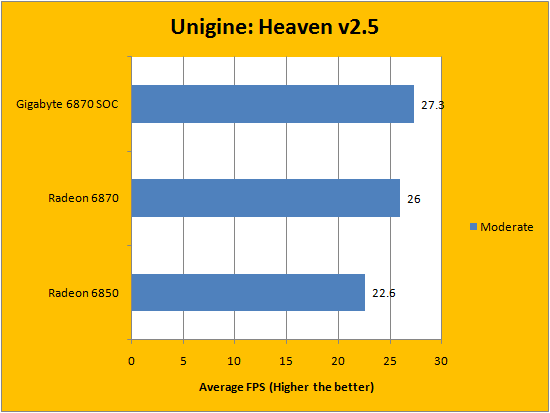

Unigine's Heaven v2.5 shows users what the company's game engine is capable of. Developed in 2009, one of the biggest features of Unigine is its advanced OpenGL 4.0 and DirectX 11 renderer. This is an excellent benchmark, because there are currently fourteen Unigine licenses used for game development at press time. For our tests, we left it at its maximum settings of 8xAA and 16xAF, using tessellation as its only manipulated variable to measure the respective performance of the AMD Barts graphics cards. The average frame rate is shown in our charts above.
