Page 6 - Benchmark: 3DMark06
About 3DMark06
3DMark®06 is the worldwide standard in advanced 3D game performance benchmarking. A fundamental tool for every company in the PC industry as well as PC users and gamers, 3DMark06 uses advanced real-time 3D game workloads to measure PC performance using a suite of DirectX 9 3D graphics tests, CPU tests, and 3D feature tests. 3DMark06 tests include all new HDR/SM3.0 graphics tests, SM2.0 graphics tests, AI and physics driven single and multiple cores or processor CPU tests and a collection of comprehensive feature tests to reliably measure next generation gaming performance today. Futuremark's exclusive Online ResultBrowser web service tracks and compares 3DMark06 scores.
Key 3DMark06 Advanced and Professional Features
* DirectX® 9 3D game performance benchmark
* Includes separate graphics card and CPU tests
* Produces workloads that simulate next generation 3D gaming requirements
* Advanced 3D game engine supports HDR Rendering with SM3.0 Shaders, in addition to SM2.0 Shaders
* Includes two HDR/SM3.0 game tests and two SM2.0 game tests
* CPU performance testing via AI and physics workloads for both single core systems and multi-threaded, multi-core and multiple processor environments
* 3D graphics feature tests include Fill Rate, Pixel Shader, Vertex Shader, SM3.0 tests, and Batch Size tests
From: Developer's Page

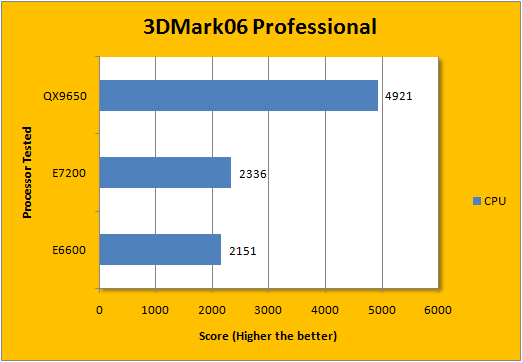

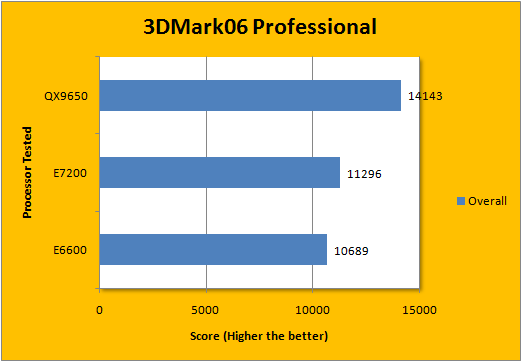

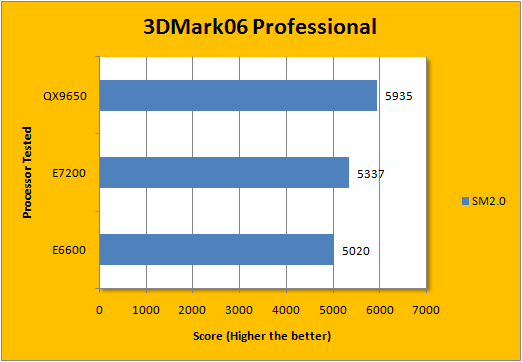

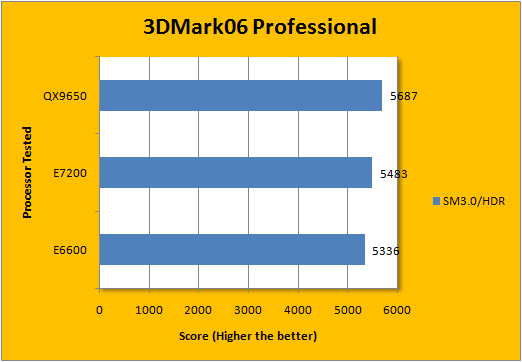

3DMark06 proves to be quite an interesting set. Let's begin with the Overall results -- the Core 2 Extreme QX9650 was 25.2% faster than the E7200, despite the fact that its clock speed is only 18.6% higher than the E7200 (But the QX9650 has more more L2 cache). The mark breakdown indicates that the QX9650's biggest advantage was in the CPU subscore, which was more than twice as high as the E7200.
