Page 7 - Benchmark: 3DMark06 Professional
About 3DMark06 Professional
3DMark®06 is the worldwide standard in advanced 3D game performance benchmarking. A fundamental tool for every company in the PC industry as well as PC users and gamers, 3DMark06 uses advanced real-time 3D game workloads to measure PC performance using a suite of DirectX 9 3D graphics tests, CPU tests, and 3D feature tests. 3DMark06 tests include all new HDR/SM3.0 graphics tests, SM2.0 graphics tests, AI and physics driven single and multiple cores or processor CPU tests and a collection of comprehensive feature tests to reliably measure next generation gaming performance today. Futuremark's exclusive Online ResultBrowser web service tracks and compares 3DMark06 scores.
Key 3DMark06 Advanced and Professional Features
- DirectX® 9 3D game performance benchmark
- Includes separate graphics card and CPU tests
- Produces workloads that simulate next generation 3D gaming requirements
- Advanced 3D game engine supports HDR Rendering with SM3.0 Shaders, in addition to SM2.0 Shaders
- Includes two HDR/SM3.0 game tests and two SM2.0 game tests
- CPU performance testing via AI and physics workloads for both single core systems and multi-threaded, multi-core and multiple processor environments
- 3D graphics feature tests include Fill Rate, Pixel Shader, Vertex Shader, SM3.0 tests, and Batch Size tests
From: Developer's Page

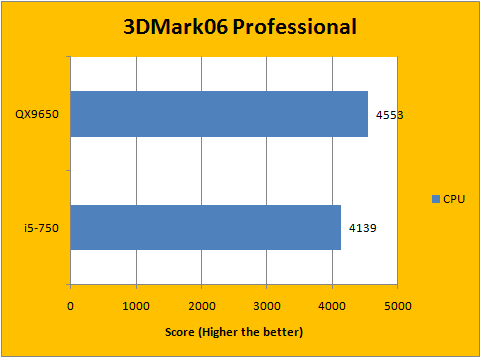

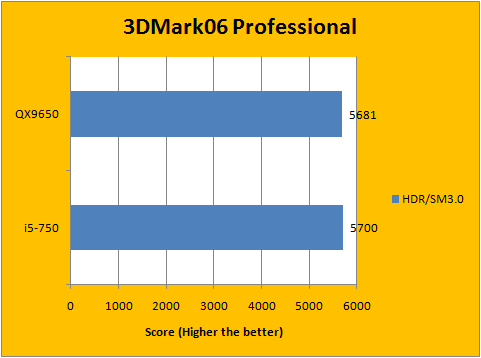

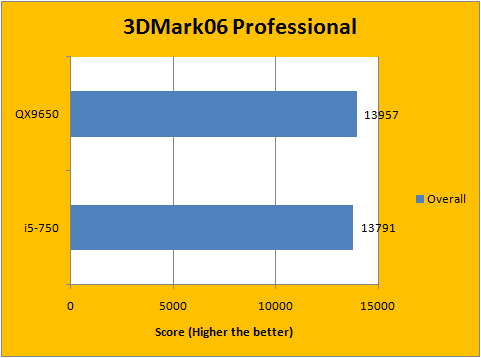

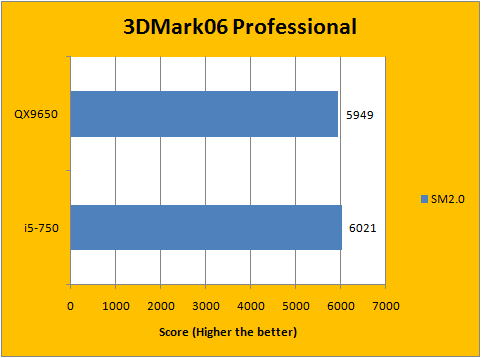

Despite scoring negligibly lower than the Intel Core i5-750 in the SM2.0 and HDR/SM3.0 results after multiple consistent runs, the Core 2 Extreme QX9650 still managed to score a hair better than the i5-750 overall in 3DMark06. A quick glance at the results breakdown showed that 3DMark06 favored the QX9650 more in processor performance, giving it a +10% score compared to the i5-750. Overall, it boiled down to a very small 1.2% difference in the end.
