Intel Desktop Board DZ77GA-70K Review (Page 12 of 13)

Page 12 - Onboard Sound Frequency Analysis

The Intel Desktop Board DZ77GA-70K the new Realtek ALC898 24-bit/192 kHz audio codec, which specifies an impressive 104dB signal to noise ratio on the input and 110dB signal to noise ratio on the output. From a design perspective, its true performance really depends on how it is implemented on the board. This means a high performance chip will only be high performance if it is implemented correctly. To find out how it is in real if, we put it through our usual RightMark Audio Analyzer tests, and here are the results.

Test Information:

Testing device: Speakers (Realtek High Definition)
Sampling mode: 16-bit, 44 kHz
Interface: MME
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.2.5
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -1.1 dB / -0.8 dB
Mono mode: OFF
Calibration singal, Hz: 1000
Polarity: correct/correct

Frequency response

From 20 Hz to 20 kHz, dB: -11.69, +0.20; -11.44, +0.44
From 40 Hz to 15 kHz, dB: -0.16, +0.20; +0.08, +0.44

Noise level

RMS power, dB: -90.3, -90.1
RMS power (A-weighted), dB: -91.4, -91.2
Peak level, dB FS: -77.2, -75.7
DC offset, %: +0.0, +0.0

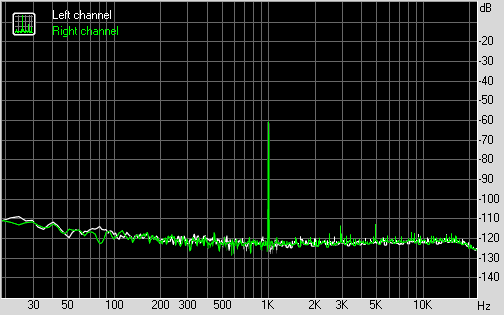

Dynamic range

Dynamic range, dB: +90.4, +90.3
Dynamic range (A-weighted), dB: +91.5, +91.3
DC offset, %: +0.00, -0.00

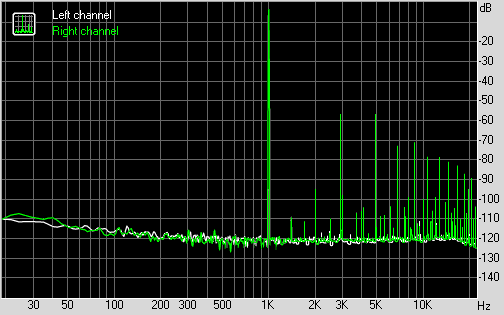

THD + Noise (at -3 dB FS)

THD, %: +0.2133, +0.2134
THD + Noise, %: +0.3052, +0.3053
THD + Noise (A-weighted), %: +0.3929, +0.3931

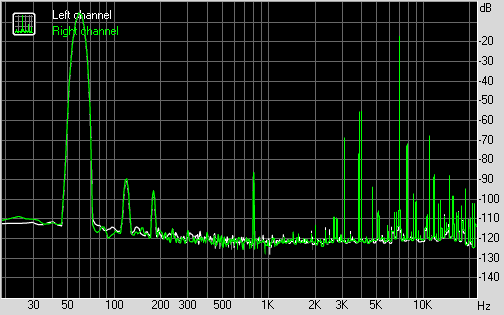

Intermodulation distortion

IMD + Noise, %: +0.4323, +0.4323
IMD + Noise (A-weighted), %: +0.5657, +0.5656

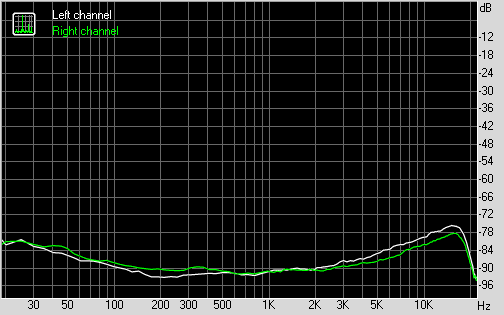

Stereo crosstalk

Crosstalk at 100 Hz, dB: -89, -87
Crosstalk at 1000 Hz, dB: -90, -90
Crosstalk at 10000 Hz, dB: -79, -81

IMD (swept tones)

IMD + Noise at 5000 Hz: 0.2183, 0.2182
IMD + Noise at 10000 Hz: 0.4053, 0.4051
IMD + Noise at 15000 Hz: 0.5985, 0.5986

Test Summary:

Frequency response (from 40 Hz to 15 kHz), dB: +0.20, -0.16 - Very good
Noise level, dB (A): -91.3 - Very good
Dynamic range, dB (A): 91.4 - Very good
THD, %: 0.213 - Poor
THD + Noise, dB (A): -48.1 - Poor
IMD + Noise, %: 0.432 - Poor
Stereo crosstalk, dB: -91.2 - Excellent
IMD at 10 kHz, %: 0.407 - Poor
General performance: Good
