Jetway NC98-525-LF Review (Page 6 of 12)

Page 6 - Benchmark: EVEREST Memory

About EVEREST Ultimate Edition

EVEREST Ultimate Edition is an industry leading system diagnostics and benchmarking solution for enthusiasts PC users, based on the award-winning EVEREST Technology. During system optimizations and tweaking it provides essential system and overclock information, advanced hardware monitoring and diagnostics capabilities to check the effects of the applied settings. CPU, FPU and memory benchmarks are available to measure the actual system performance and compare it to previous states or other systems. Furthermore, complete software, operating system and security information makes EVEREST Ultimate Edition a comprehensive system diagnostics tool that offers a total of 100 pages of information about your PC.

Memory benchmarking

Memory read and write speed, memory latency measurement to stress the memory and cache subsystem, including reference list to compare actual performance with other systems.

From: Developer's Page

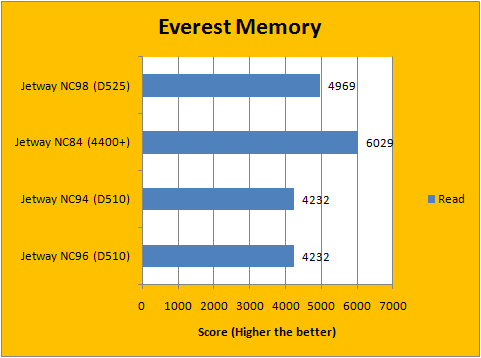

Everest Memory 1

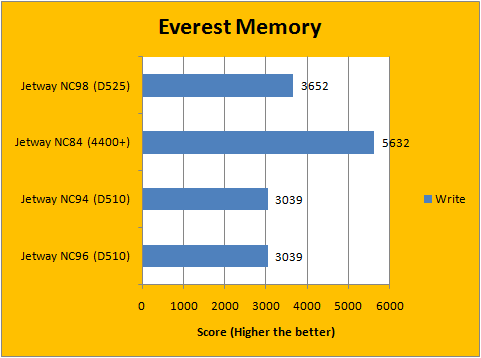

Everest Memory 2

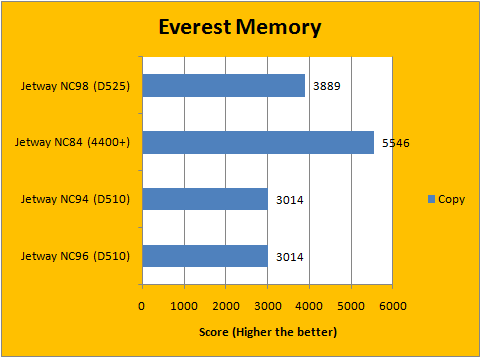

Everest Memory 3

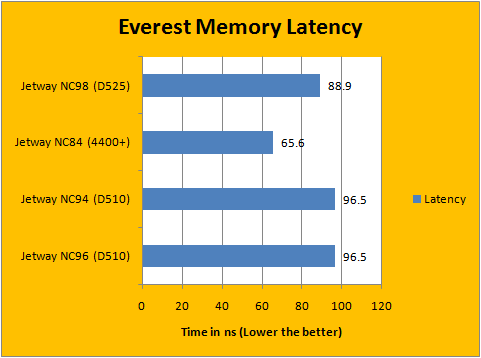

Everest Memory 4

The Intel Atom D510, Intel Atom D525, and AMD Athlon X2 4400+ Brisbane all have their own integrated memory controller, rather than using the old fashioned Northbridge to achieve this function. That being said, there is still some relatively high memory latency, which of course is an Intel issue. We recorded a slight improvement in this test, thanks to the higher clocked FSB on the Atom D525 running at 200MHz with DDR2-800 RAM. The read and write capabilities are now comparable to the Celeron 420, while the copy speed is closest to the Opteron HE 2210 in EVEREST. In terms of latency, it is now closer to the Pentium M 730 than the previous Core Duo T2500; an improvement of 7.6ns.
