Kingston UV500 240GB (M.2) Review (Page 4 of 11)

Page 4 - Benchmark: ATTO Disk Benchmark

About ATTO Disk Benchmark

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

From: Developer's Page

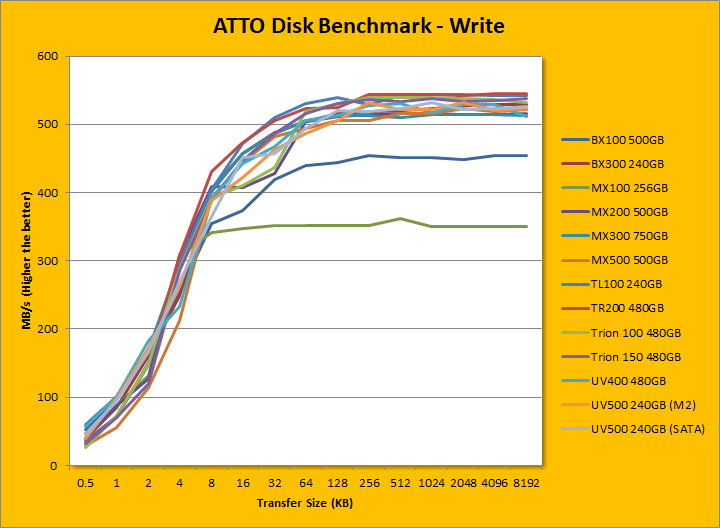

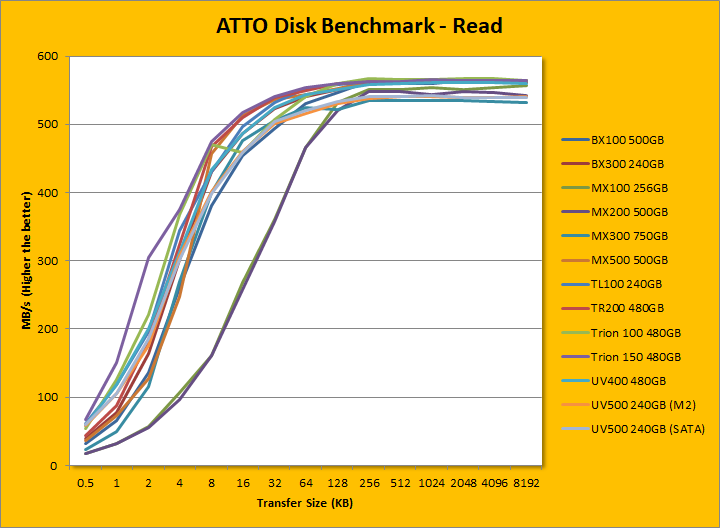

Following up next is our usual ATTO read and write tests. ATTO is an often-quoted benchmark, because it is easy to use and accurate. For the most part, it is a favorite among reviewers, and I have grown to embrace it as much as the next for the last little while. ATTO uses easily compressible data, so compression-heavy controllers will perform very well here; as far as the Marvell 88SS1074 is concerned -- well, here are our results. As manufacturer peak read and write performance ratings are usually achieved using ATTO, whether a drive lives up to its marketing claims or not can be validated by this program. Kingston claims the UV500's maximum read and maximum write are pinned at 520MB/s and 500MB/s, respectively. According to our tests, these numbers were slightly underrated. It peaked at 540.474MB/s read and 531.555MB/s write. Under the curve, it was a step back from the UV400 and remained nearly identical to its SATA variant. The write results are quite comparable to the Crucial BX300 and MX500. Meanwhile, the UV500's read curve was consistently slower than the UV400 by quite wide a margin, which in turn was slower than the OCZ Trion 150. The UV500 was faster than the BX300 and MX500 until 8K for read, where by then both Crucial drives have leapt ahead.
