Page 4 - Benchmark: AIDA64 FPU
About AIDA64 Engineer
AIDA64 Engineer has a hardware detection engine unrivaled in its class. It provides detailed information about installed software and offers diagnostic functions and support for overclocking. As it is monitoring sensors in real time, it can gather accurate voltage, temperature and fan speed readings, while its diagnostic functions help detect and prevent hardware issues. It also offers a couple of benchmarks for measuring the performance of individual hardware components or the whole system. It is compatible with all 32-bit and 64-bit Windows editions, including Windows 10 and Windows Server 2019.
From: Developer's Page

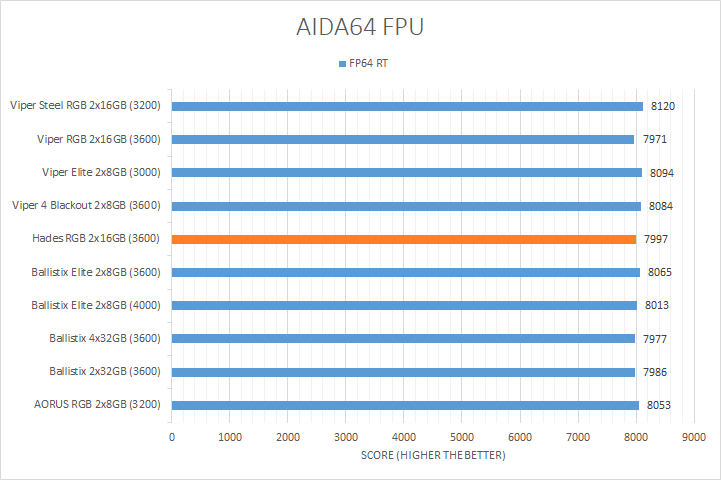

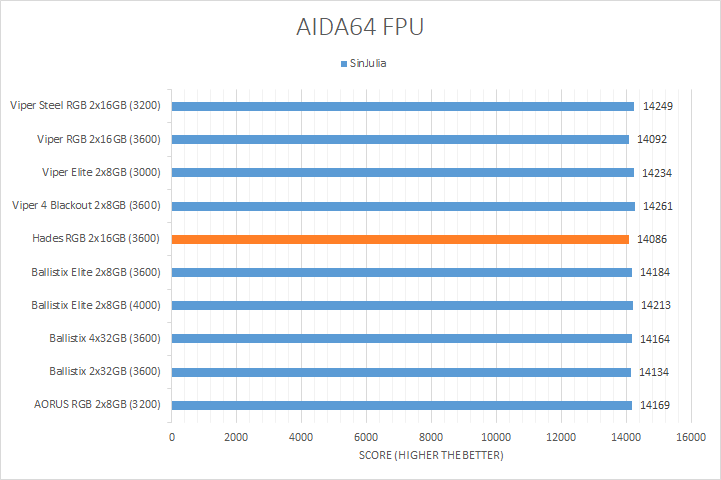

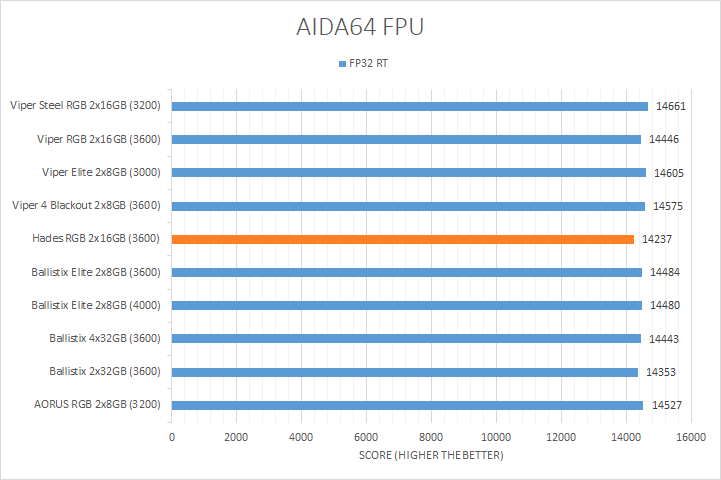

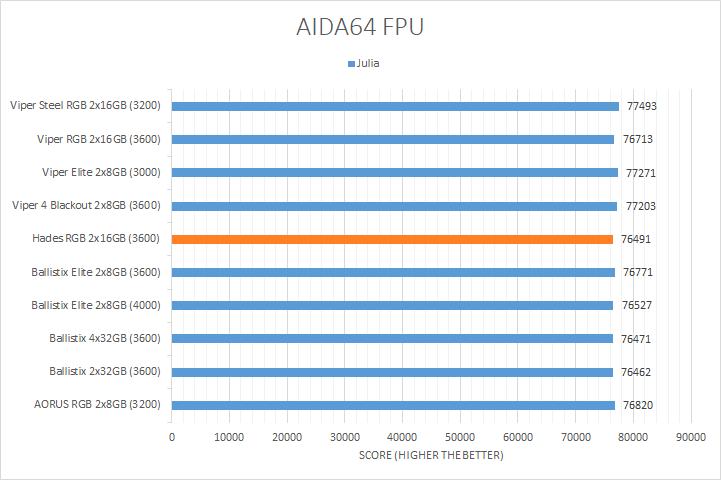

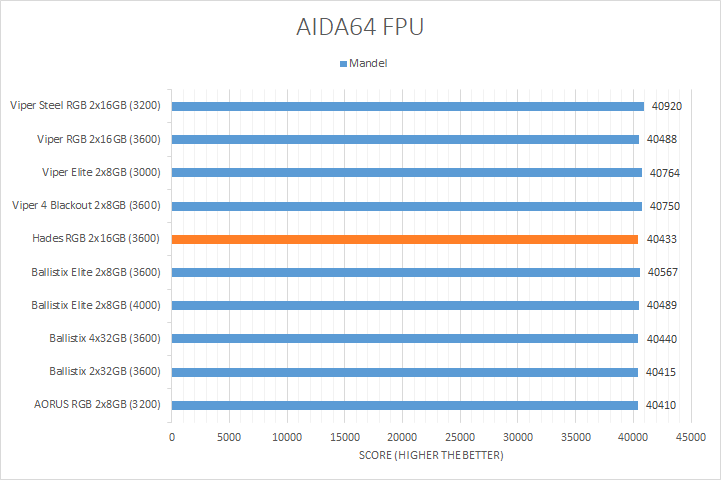

As for our second set of benchmark results, we are still using AIDA64, except now with their FPU tests. If you thought the previous page's results were close, then the AIDA64 FPU tests were even closer. This is because the results obtained are generally more dependent on the tested processor. The outcome of these results is almost irrelevant to the speed or latencies of the installed memory modules. As you can see in our graphs above, all of the results were within three percent of each other. Once again, the Lexar Hades RGB DDR4-3600 2x16GB dual channel kit scored in the bottom half for most of these tests. Even so, they were all within the same ballpark as each other, so these differences do not really mean much.
