Page 5 - Benchmark: AIDA64 Memory
AIDA64 Engineer has a hardware detection engine unrivaled in its class. It provides detailed information about installed software and offers diagnostic functions and support for overclocking. As it is monitoring sensors in real time, it can gather accurate voltage, temperature, and fan speed readings, while its diagnostic functions help detect and prevent hardware issues. It also offers a couple of benchmarks for measuring the performance of individual hardware components or the whole system. It is compatible with all 32-bit and 64-bit Windows editions, including Windows 10 and Windows Server 2019.
From: Developer's Page

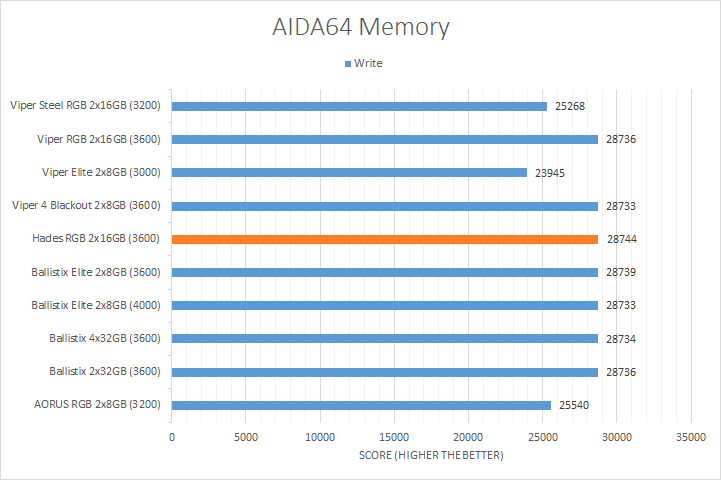

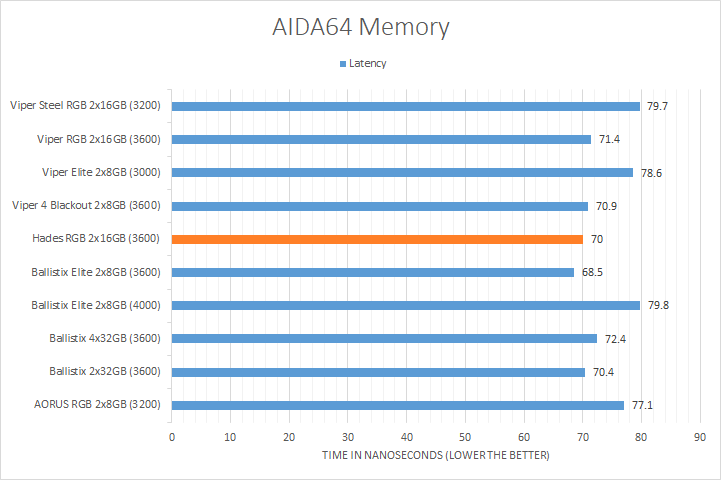

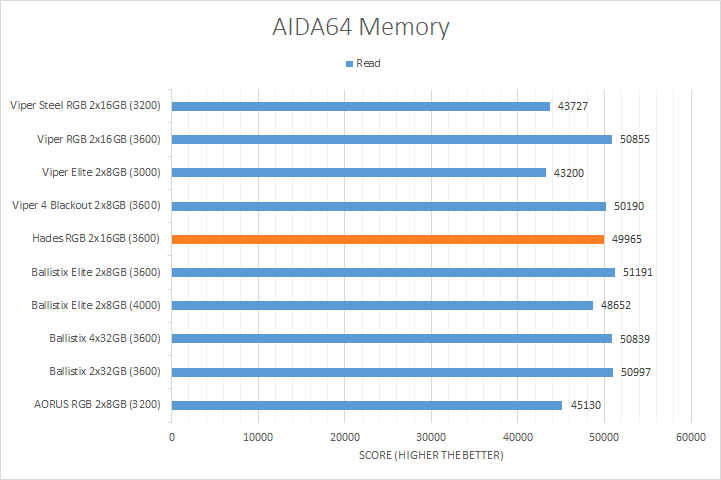

The final set of AIDA64 tests are the synthetic memory tests. Traditionally, higher memory bandwidth RAM kits are favored on the Copy, Write, and Read results. Operating at DDR4-3600, the Lexar Hades RGB DDR4-3600 2x16GB pulled out much more competitive numbers. RAM kits operating at 3000MHz and 3200MHz were notably slower in all of the tests. Compared to other DDR4-3600 kits, the one from Lexar was a mixed bag. For example, the Copy and Read were a bit slower for DDR4-3600 kits, but the Write numbers slightly edged out second place. As for the latency, the Lexar Hades RGB DDR4-3600 operates at CAS latency 18, but the measured latency was lower than others, which is a good result here. Compared to the Viper Steel RGB DDR4-3200 2x16GB, which uses the same memory chips, the extra boost in operating speed provided more favorable results for the Lexar Hades RGB across the board.
