QNAP TS-253B Review (Page 2 of 8)

Page 2 - A Closer Look - Hardware (External)

The QNAP TS-253B's external design is all new from the company. The TS-253B is created in stark contrast with anything we have seen from their lineup, and I found the darkly tinted plastic cover, blue accents, and rounded corners to be quite attractive. My only complaint is this kind of plastic covers are epic fingerprint magnets; not to mention they scratch and swirl almost just by looking at it. That aside, as the TS-253B is meant to be a home entertainment device, it is great to have something that looks good in the living room. Furthermore, in my personal opinion, it will not look out of place in an industrial setting either. That said, while the cover design is a departure from mainstream systems, there is nothing too radical at heart -- and this is a good thing. This is still a two-bay device in its traditional form factor. Measuring in at 10.5cm wide, 22.6cm deep, and 16.8cm tall according to specifications, these figures are very similar to comparable boxes in the range. Like many new network attached storage systems we have reviewed in the past, the QNAP TS-253B features an external power brick; we will cover that in detail in just a moment. The advantage of this is that a heat source is placed outside the system for improved thermal efficiency.

Even though the QNAP TS-253B features a darkly tinted plastic cover, the QNAP TS-253B still features removable front loaded drive trays -- something ASUSTOR was unable to do with the AS3202T and other devices based on the same chassis. In order to access the removable front loaded drive trays, simply slide a tab lock down on the left, give it a quick tug, and the magnetic cover will pop right off. The tradeoff is the lack of ventilation slots on the front cover means cooling performance will be affected slightly. For the current design, airflow is over the hard drives driven by the rear mounted cooling fan inside the system, and enters the NAS through ventilation slots at the bottom and on the side; more on this later.

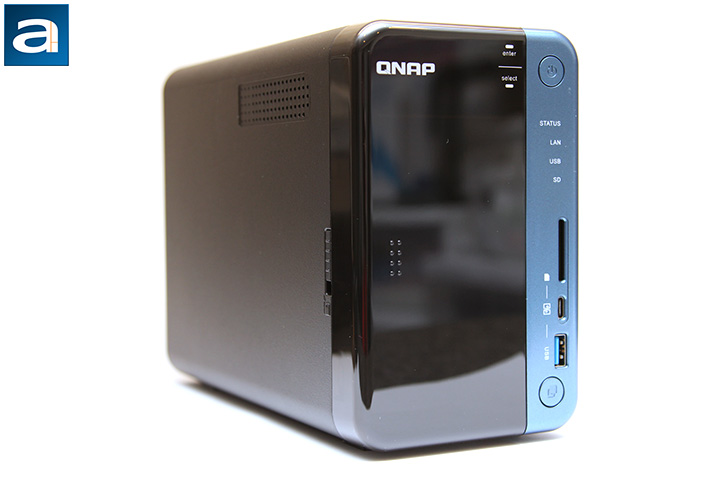

QNAP's logo is printed on the top left corner of the plastic cover; whereas a blue surface occupies a slim vertical portion on the right. The TS-253B's OLED display hidden next to QNAP's logo is navigated by two capacitive touch buttons adjacent to it: Enter and Select. Something like a D-pad may greatly enhance navigation, but there is not much room here. Fortunately, this screen is not necessarily used all the time. When on, its OLED screen displays large, clear text in white to contrast with its background. The OLED display allows the user to view the boot sequence, monitor quick information, as well as easily perform some configuration and maintenance tasks.

An array of LEDs can be seen on the blue strip under the power button indicates system status, LAN status, USB status, and SD card status, respectively. The system status LED will turn off when the hard disks are on standby. Each independent hard drive has its own status LED as well, which are cleverly placed behind the plastic cover. The drive status LEDs flashes when there is disk activity, and remains on when it is idling. It turns red if the system determines the corresponding hard drive is in trouble. Extensive documentation on the behavior of the indicator LEDs can be found on the company's website. Unfortunately, at press time, the manual is available in every language other than English. Below the array of LEDs is an SD card slot, USB Type-C connector, USB 3.0 Type-A port, and a one-touch copy button. The easy to access drive bays in conjunction with convenience added by the simple OLED screen really added to the overall usage experience of these excellent network appliances on my network. By retaining its excellent design, there is absolutely no learning curve for users who are familiar with using QNAP NAS systems -- it is all plug and play.

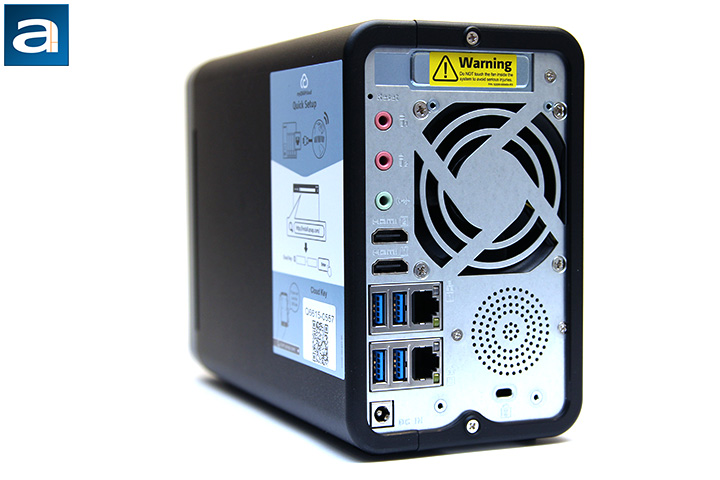

The QNAP TS-253B is constructed on a steel frame, while its shell that covers the remainder of the sides of the system is composed of black plastic. The textured plastic is reasonably resistant to fingerprints and scratches. What we have at the back of the system is simple but generous configuration of connectors. Here, we have four USB 3.0 ports, two HDMI 1.4b connectors, two Gigabit Ethernet ports, two 3.5mm dynamic microphone inputs, one 3.5mm speaker line out jack, and a DC 12V input from the external power brick. There is also a Kensington lock near the bottom. Occupying a large chunk of space at the back is a single 70mm exhaust fan to pull heat out of your NAS server. Exhaust vents are cut into the steel panel. In my opinion, a proper fan grille would have been better, but this should not affect cooling performance to a significant degree.

The plastic shell is attached by two screws. You will not void your warranty if you want to open it up, because you will have to do so in order to upgrade the RAM. Even hard drive installation does not require you to take the plastic shell off. What the warranty seal covers is a screw that attaches the motherboard to the chassis frame. You will void the warranty only if you want to take the motherboard out, which is not something a typical person will do. There are no other user serviceable parts inside. Therefore, I think the warranty seal is placed in a reasonable location. We will dig into the TS-253B's interior in more detail on the next page.

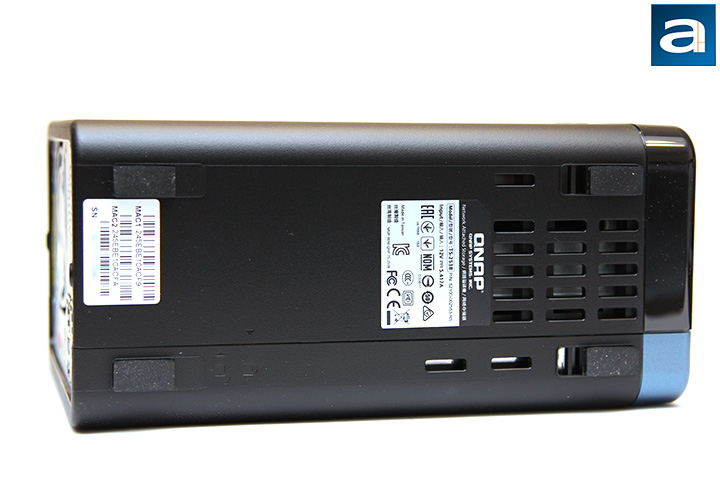

There is nothing particularly exciting at the bottom of the QNAP TS-253B's chassis; what you will see here are four small legs affixed on top of its plastic shell. As always, they are installed to reduce vibration noise, increase grip, and prevent surface scratching. The bottom of the network attached storage system features a neat matrix of ventilation openings. It is placed right near the front, below the hard drives bays inside, as an air intake. A small inscription at the bottom indicating locked and unlocked is present to indicate the position of the plastic shell. You know, in case you could not tell it was open or closed in the first place.

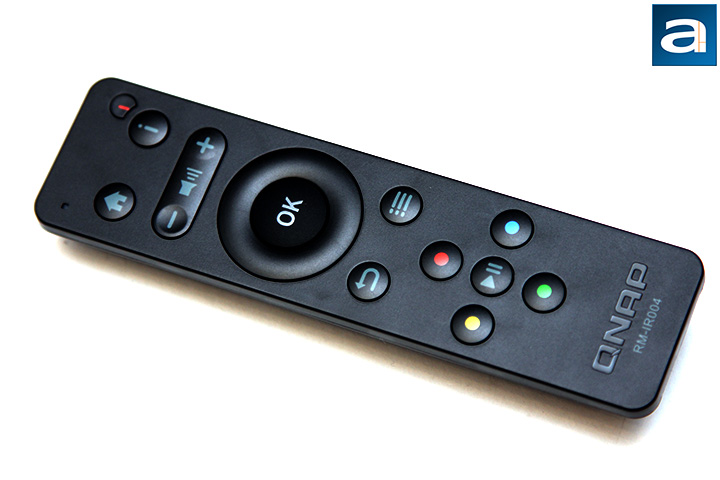

An RM-IR004 remote control is included with the QNAP TS-253B. It is powered by two included AAA batteries, which is convenient and readily available. if you are looking to place your network attached storage system in your living room, and use it as a media center PC, this will be an absolutely invaluable accessory. The remote control is very compact, and extremely simple in nature. As you can see in our photo above, there is a power button at the top, with a Home and Info button under it. Volume control occupies the next line. A D-pad with an OK button in the middle is present to simplify navigation tasks. Below that, we a Play/Pause button with four auxiliary buttons. All of them are aptly labeled with its corresponding symbol, which should be quite self-explanatory. Overall, you will not find a remote control much simpler, and I am happy it is quite intuitively designed.
