Seagate FireCuda 510 1TB Review (Page 5 of 11)

Page 5 - Benchmark: Crystal Disk Mark 6.0

About Crystal Disk Mark

- Measure sequential reads/writes speed
- Measure random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speed
- Select test data (Random, 0Fill, 1Fill)

From: Developer's Page

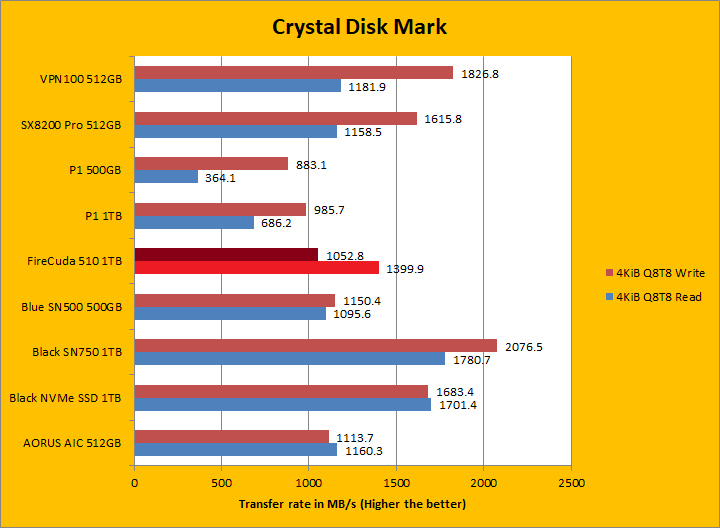

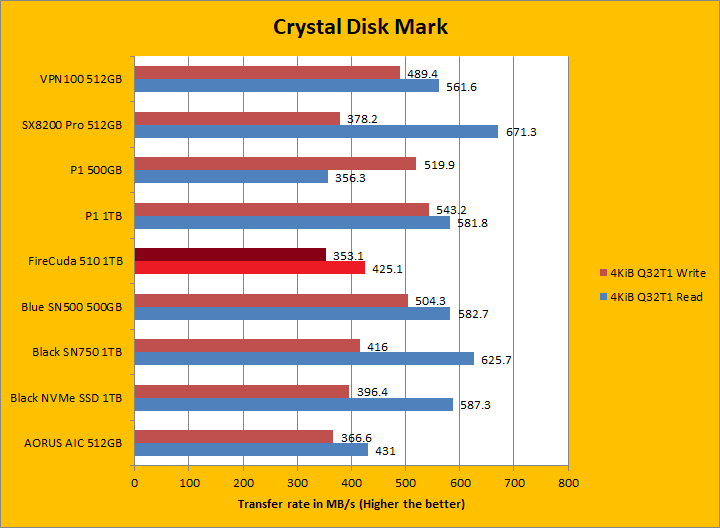

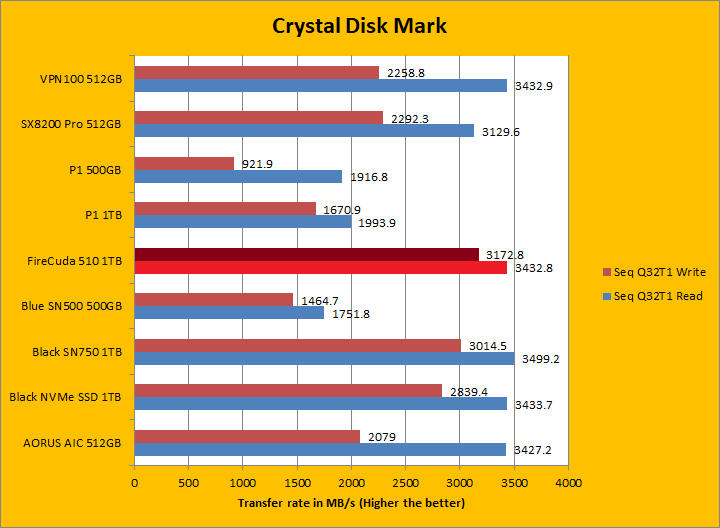

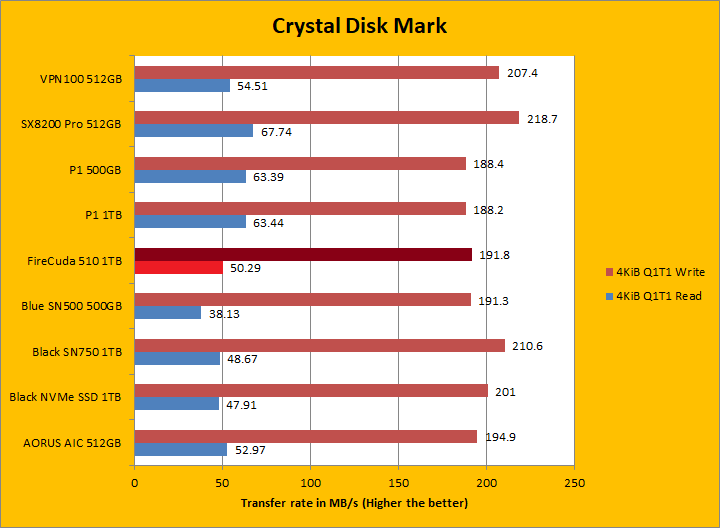

Crystal Disk Mark 6.0 is in the spotlight. Just a bit of background information; higher capacity drives tend to perform a little better in these tests. The ability of a controller and flash memory to deliver high IOPS will provide huge benefits to the score as well. The Seagate FireCuda 510 1TB is rated at up to 620,000 IOPS read and 600,000 IOPS write. Looking at the read and write results of all four sections, the FireCuda 510 1TB had the highest sequential write speed here at APH Networks. Its sequential read speed was also among the top and matched the advertised figures. Otherwise, its 4KiB Q8T8 read and write were not that ideal; scoring closer to the budget NVMe drives than the performance ones. The 4KiB Q32T1 read and write were dead last among the compared drives. Meanwhile, the 4KiB Q1T1 read and write gave no surprises. I will let you make your own comparisons in our list of SSDs in the graphs above.
