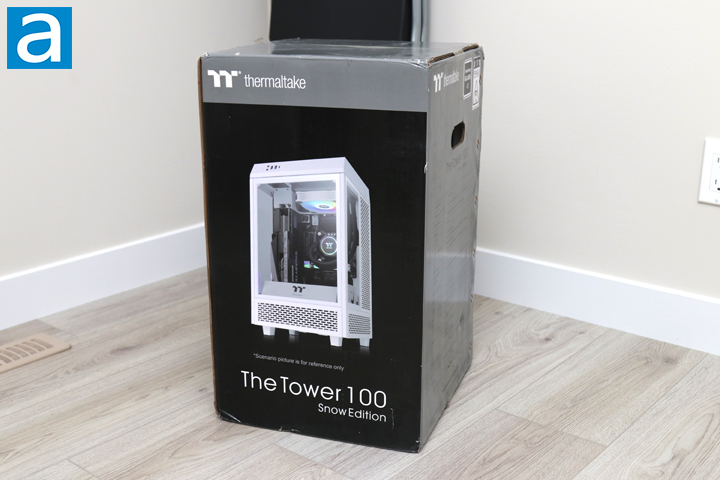

Today's review unit of the Thermaltake The Tower 100 Snow arrived from Thermaltake's offices in City of Industry, California. Traveling with UPS and their Standard ground service, this box arrived in decent condition with no real holes or dents to be too concerned about. As this computer case is relatively large, Thermaltake has shipped this box in its retail packaging. The retail box is pretty nice with a fully colored exterior. The front shows off a full build in The Tower 100 Snow, albeit in a scaled down fashion. The top shows off the Thermaltake logo and product name, while the bottom shows off the product name. I like the simplistic look of the overall box.
One thing that did bother me was the naming of this case, since it means The Tower 100 Snow will always sound a bit strange when you read "Thermaltake The Tower 100 Snow". This is just a small thing that bothers me as a writer more than anything else. Otherwise, you can see we have received the Snow Edition of this case, which means we have a full white exterior and interior. This enclosure also comes in a black variant if you are interested. Around the side of the box, we have a gray background with specifications and features about the case inside. Otherwise, there is not a whole lot else to point out, so let us proceed in opening the box.
Before we do so, I have grabbed the specifications from the manufacturer's website for you viewing pleasure:
SERIES: The Tower
MODEL: The Tower 100 Snow
CASE TYPE: Mini Tower
DIMENSION (H X W X D): 462.8 x 266 x 266 mm (18.2 x 10.5 x 10.5 inch)
NET WEIGHT: 6.1 kg / 13.45 lbs.
SIDE PANEL: Tempered Glass x 3 (4mm thickness)
COLOR: White
MATERIAL: SPCC
COOLING SYSTEM
- Top (exhaust): 120 x 120 x 25 mm Turbo fan (1000rpm, 16 dBA) x 1
- Rear(exhaust): 120 x 120 x 25 mm Turbo fan (1000rpm, 16 dBA) x 1
DRIVE BAYS
-HIDDEN: 2 x 2.5“(with side bracket); 2 x 3.5” (without rear fan)
EXPANSION SLOTS: 2
MOTHERBOARDS: 6.7” x 6.7” (Mini ITX)
I/O PORT: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 2
PSU: Standard PS2 PSU (optional)
FAN SUPPORT
- Top: 1 x 120mm, 1 x 140mm
- Rear: 1 x 120mm, 1 x 140mm
- Top of the PSU Cover: 1 x 120mm, 1 x 140mm
RADIATOR SUPPORT
- Top: 1 x 120mm
CLEARANCE
- CPU cooler height limitation: 190mm
- VGA length limitation: 330mm
- PSU length limitation: 180mm

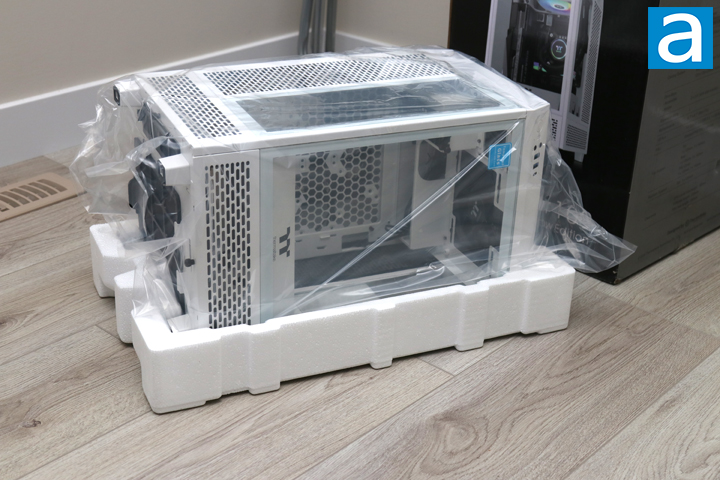

Out of the box, the Thermaltake The Tower 100 Snow comes packaged in a clear plastic bag. All of the glass panels have plastic wrap on the external sides to ensure the tempered glass is protected from scratches or other marks during shipping. The whole case is sandwiched between two large white foam brackets to further protect the large case. Otherwise, some documentation and installation information can be found in another resealable bag. There is not much else in this retail box, so let us take a closer look at The Tower 100 Snow.
