Western Digital Red Pro WD6001FFWX 6TB Review (Page 8 of 11)

Page 8 - Benchmark: PassMark PerformanceTest 8.0

About PassMark PerformanceTest 8.0

This Advanced Disk Test, which is part of PerformanceTest, measures the data transfer speed when reading or writing data to one or more disks. The speed that data can be transferred between memory and a hard disk drive is one of a system's most important performance aspects. There are quite a few factors which have a bearing on this speed and the Advanced Disk Drive Test allows the user to vary most of these factors and compare the results.

The test supports any drive that can be mounted under Windows. Including IDE drives, SCSI, RAID, USB key drives, SATA, networked shared drives and external drives.

Users have the ability to test multiple drives at the same time using multiple threads, and specify:

- The size of the test file used. Larger files mean that the system cache has less of an effect on the test types, which use caching (see below).
- The size of the data block used for each read or write request. Larger blocks mean less requests and can lead to an improvement in performance.
- The choice of four access methods - C/C++ API, Win32 API cached / uncached and raw disk access.
- Sequential or random access (seeking plus reading and writing)
- Synchronous and Asynchronous access
- The split between reading and writing

The results of all completed tests may be graphed using our custom graphing components.

From: Developer's Page

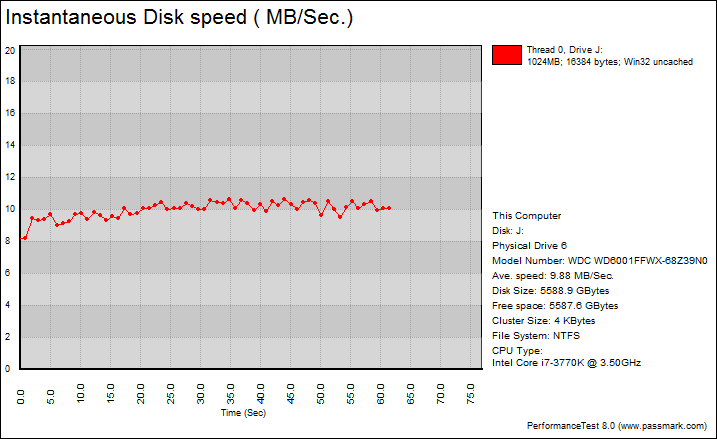

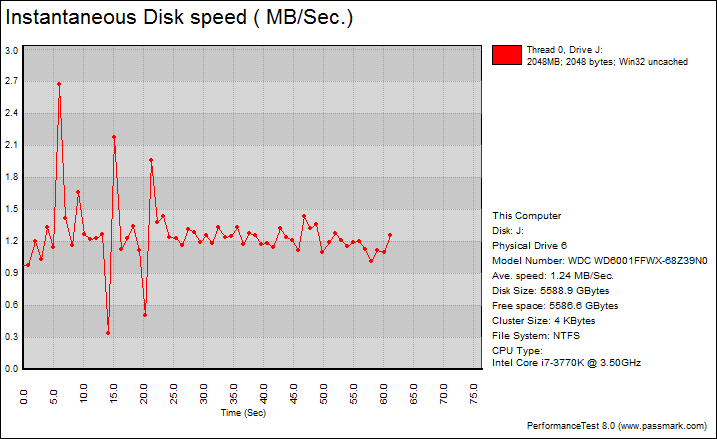

PassMark PerformanceTest 8.0's Advanced Disk Test, unlike HD Tune Pro 4.60, generates some awesome graphs right out of the box. It also provides valuable insight in simulating real world performance applications. To make things clear to you, the first graph simulates a database server, followed by a file server, web server, and workstation. Drives with high sequential read and write performance will do well in PassMark PerformanceTest 8.0. However, it also requires high IOPS capabilities for the best score, and as such, results for hard disk drives will prove to be very relevant.

Overall, the Western Digital Red Pro WD6001FFWX's performance was excellent compared against other hard drives. With results of 1.24MB/s, 8.91MB/s, 9.88MB/s, and 3.36MB/s, this is better than any drive we have ever tested here at APH Networks. Just for reference, the 5,900RPM Seagate Desktop SSHD had a score of 0.98MB/s, 7.28MB/s, 6.29MB/s, 3.10MB/s, respectively; while the 5,400RPM Western Digital Blue SSHD came in at 0.90MB/s, 7.22MB/s, 8.09MB/s, 2.95MB/s, in the same order. The only other drive that was able to compete against the WD Red Pro 6TB was the WD Black 6TB, which posted numbers of 1.23MB/s, 9.10MB/s, 9.74MB/s, 3.33MB/s, respectively.
