Page 7 - Benchmark: PassMark PerformanceTest 10
About PassMark PerformanceTest 10
This Advanced Disk Test, which is part of PerformanceTest, measures the data transfer speed when reading or writing data to one or more disks. The speed that data can be transferred between memory and a hard disk drive is one of a system's most important performance aspects. There are quite a few factors which have a bearing on this speed and the Advanced Disk Drive Test allows the user to vary most of these factors and compare the results.
The test supports any drive that can be mounted under Windows. Including IDE drives, SCSI, RAID, USB key drives, SATA, networked shared drives and external drives.
Users have the ability to test multiple drives at the same time using multiple threads, and specify:
- The size of the test file used. Larger files mean that the system cache has less of an effect on the test types, which use caching (see below).
- The size of the data block used for each read or write request. Larger blocks mean less requests and can lead to an improvement in performance.
- The choice of four access methods - C/C++ API, Win32 API cached / uncached and raw disk access.
- Sequential or random access (seeking plus reading and writing)
- Synchronous and Asynchronous access
- The split between reading and writing
The results of all completed tests may be graphed using our custom graphing components.
From: Developer's Page
PassMark PerformanceTest 10's Advanced Disk Test, unlike HD Tune Pro 5.70, generates some awesome graphs right out of the box. It also provides valuable insight in simulating real world performance applications. To make things clear to you, the first graph simulates a database server, followed by a file server, web server, and workstation. Obviously, PassMark PerformanceTest 10 uses highly compressible data in most tests some controllers can really take advantage of. However, it also requires high IOPS capabilities for the best score. Unfortunately, the XPG Atom 50 1TB did not provide generally flat graphs likely due to its DRAM-less design and caching algorithms, which means you will see some performance fluctuations in operation.

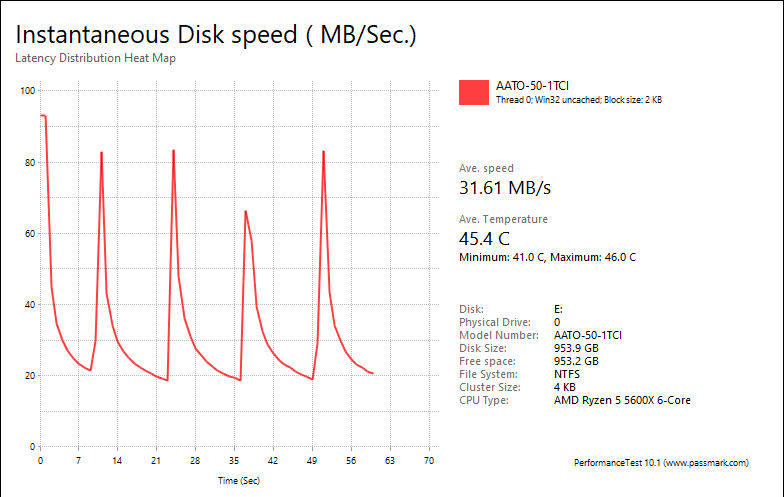

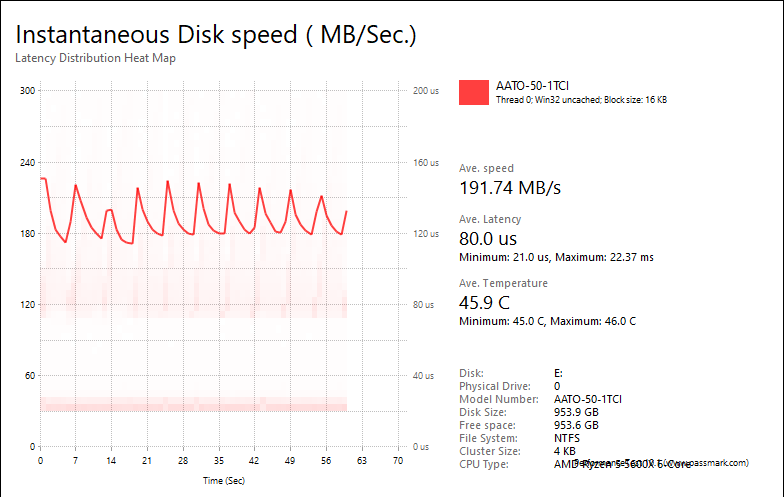

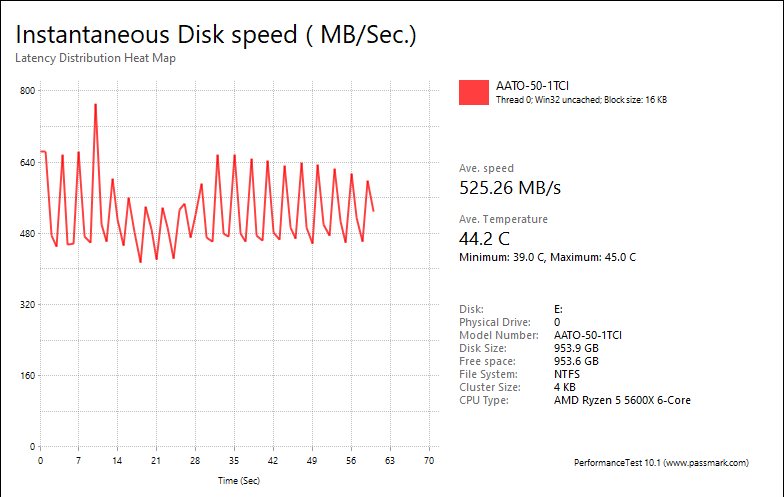

Overall, this PCIe 4.0 NVMe solid state drive's performance was pretty poor even for a budget drive, which shows the importance of having DRAM. With results of 31.61MB/s, 525.26MB/s, 1225MB/s, and 191.74MB/s, respectively, the XPG Atom 50 1TB was extremely slow even for a budget PCIe 4.0-based SSD in the first two tests. The Crucial P5 Plus 1TB came in at 184.31MB/s, 1385MB/s, 1496MB/s, and 204.9MB/s, in the same order. The flagship XPG Gammix S70 Blade 1TB, which has a similar controller with DRAM, was able to pull 151.08MB/s, 1336MB/s, 1458MB/s, and 197.86MB/s. Meanwhile, the PCIe 3.0-based WD_BLACK SN750 1TB came in at 262.43MB/s, 1924MB/s, 2014MB/s, and 185.29MB/s, respectively. The Kingston KC2500 1TB posted results of 215.52MB/s, 1261MB/s, 1607MB/s, and 201.03MB/s, in the same corresponding order.
UPDATE March 17, 2022: The drive was retested with PerformanceTest 10.2 with improved results.

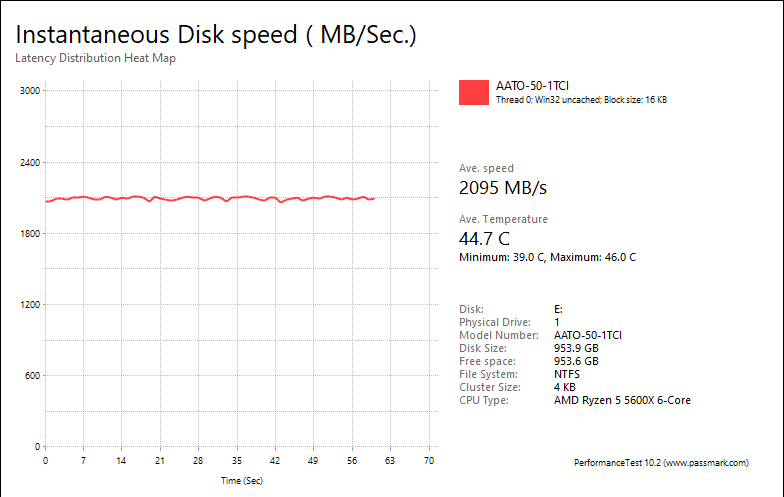

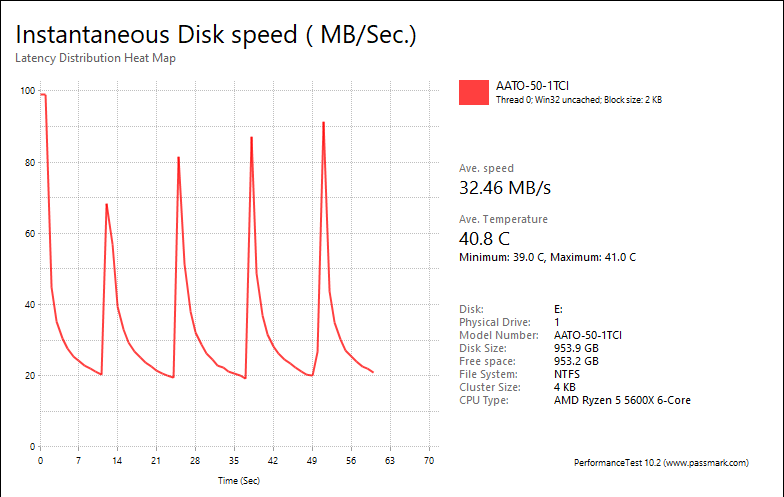

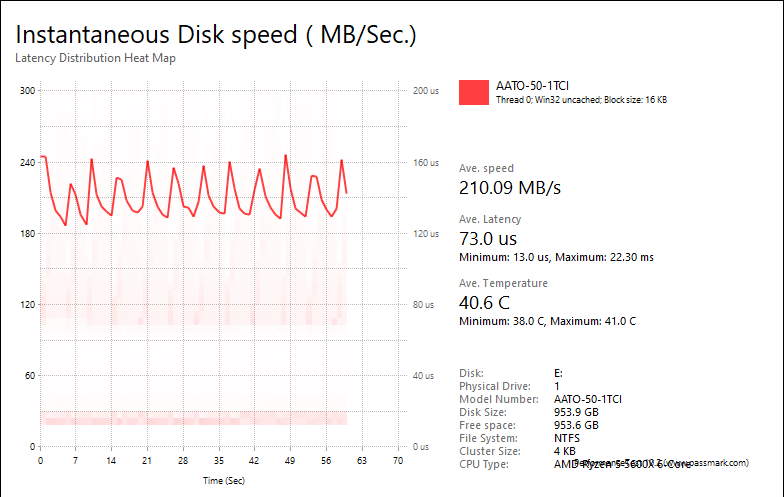

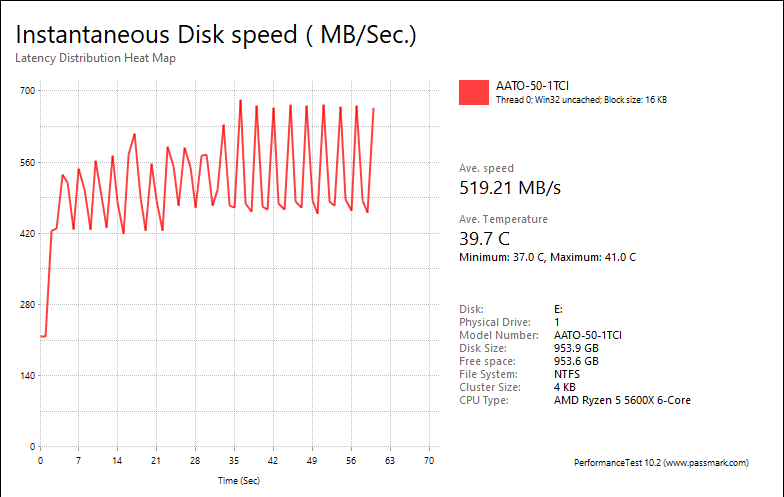

The updated results came in at 32.46MB/s, 519.21MB/s, 2095MB/s, and 210.09MB/s, respectively, which is still pretty poor. This is compared to the updated SN850 1TB results of 297.22MB/s, 2126MB/s, 2378MB/s, and 216.79MB/s, in the same order. Meanwhile, the KC3000 came in at 246.01MB/s, 1526MB/s, 2057MB/s, and 266.25MB/s, respectively.
