Page 10 - Onboard Sound Frequency Analysis
ASUS promises excellent audio performance with the ProArt X870E-Creator WiFi motherboard. This comes with a dedicated audio zone electrically separated and physically shielded from the rest of the components to reduce electrical noise. This performance model uses a Realtek ALC1220P 7.1 32-bit/192 kHz audio codec. Further sound quality optimizations include a de-pop circuit, audio-grade capacitors, and audio shielding. To see how it performs, we fired up RightMark Audio Analyzer, and here is the full report.
Test Information:
Testing device: [MME] Speakers (2- High Definition Audio)
Sampling mode: 24-bit, 48 kHz
Interface: MME
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.4.5
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -0.1 dB / -0.2 dB
Mono mode: OFF
Calibration signal, Hz: 1000
Polarity: inverted/inverted
Frequency response
From 20 Hz to 20 kHz, dB, -1.11, +0.00; -1.18, -0.07
From 40 Hz to 15 kHz, dB, -0.01, +0.00; -0.08, -0.07

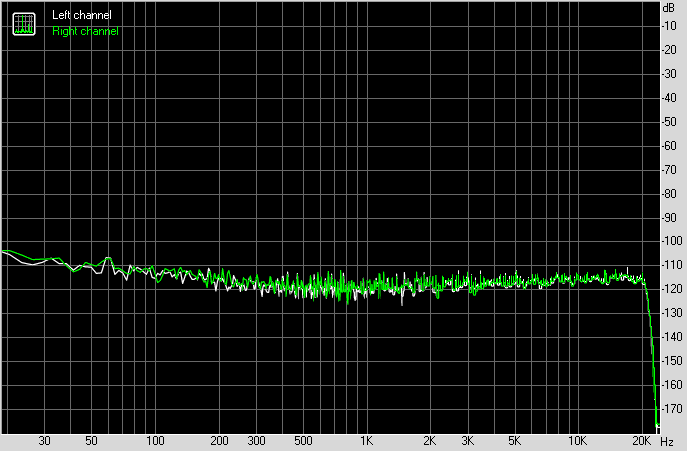

Noise level
RMS power, dB: -86.1, -85.9
RMS power (A-weighted), dB: -87.5, -87.2
Peak level, dB FS: -64.1, -64.9
DC offset, %: -0.0, -0.0

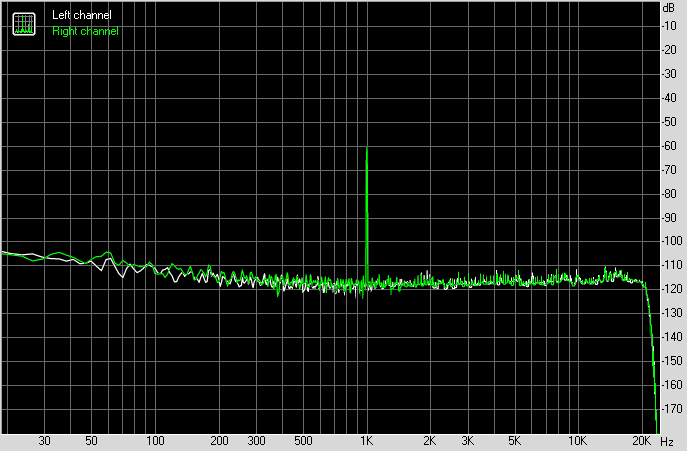

Dynamic range
Dynamic range, dB: +85.9, +85.8
Dynamic range (A-weighted), dB: +87.3, +87.1
DC offset, %: -0.00, +0.00
THD + Noise (at -3 dB FS)
THD, %: 0.00167, 0.00194
THD + Noise, %: 0.01081, 0.01092
THD + Noise (A-weighted), %: 0.00938, 0.00953
Intermodulation distortion

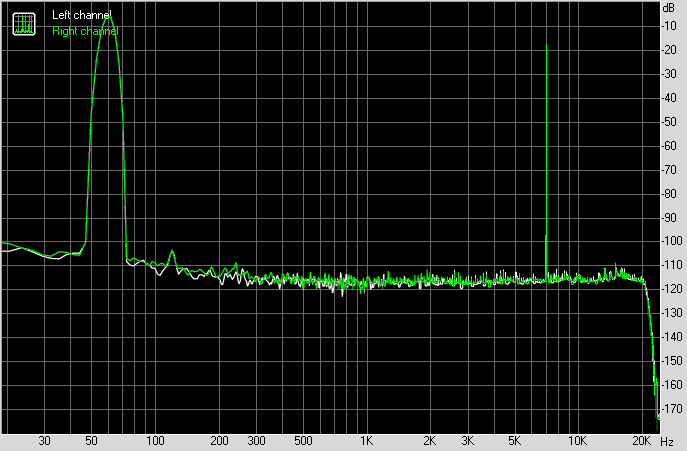

IMD + Noise, %: 0.01301, 0.01322
IMD + Noise (A-weighted), %: 0.01115, 0.01133

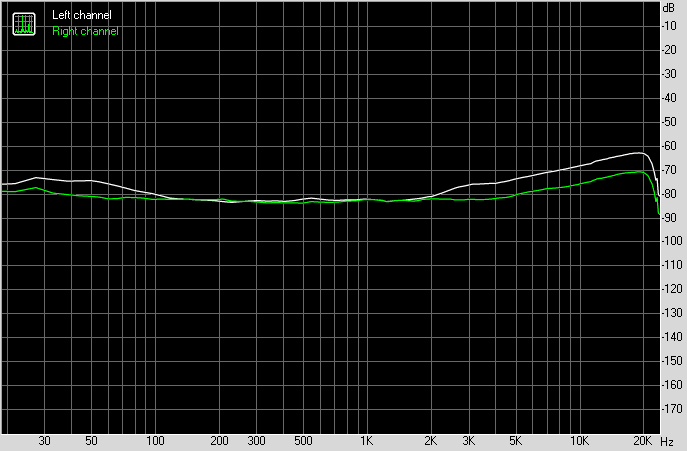

Stereo crosstalk
Crosstalk at 100 Hz, dB: -79, -81
Crosstalk at 1000 Hz, dB: -81, -81
Crosstalk at 10000 Hz, dB: -67, -75

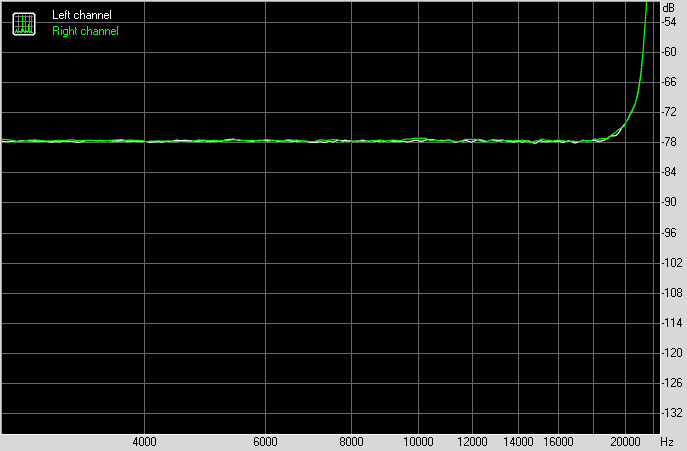

IMD (swept tones)
IMD + Noise at 5000 Hz: 0.01288, 0.01327
IMD + Noise at 10000 Hz: 0.01319, 0.01398
IMD + Noise at 15000 Hz: 0.01307, 0.01331
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.01 - Excellent
Noise level, dB (A): -87.3 - Good
Dynamic range, dB (A): 87.2 - Good
THD, %: 0.00181- Excellent
THD + Noise, dB (A): -80.5 - Good
IMD + Noise, %: 0.013- Very Good
Stereo crosstalk, dB: -82.3 - Very Good
IMD at 10 kHz, %: 0.013- Very Good
General performance - Very Good
