Page 10 - Onboard Sound Frequency Analysis
ASUS promises solid audio performance with the ROG Strix B660-I Gaming WiFi motherboard. This mITX gaming motherboard uses a ROG SupremeFX 7.1-Channel High Definition Audio 32-Bit/192 kHz audio codec. Further sound quality optimization is made with audio-grade capacitors and audio shielding. To see how it performs, we fired up RightMark Audio Analyzer for the answer, and here is the full report.
Test Information:
Testing device: [MME] Speakers (Realtek(R) Audio)
Sampling mode: 24-bit, 48 kHz
Interface: MME
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.4.5
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -1.2 dB / -1.2 dB
Mono mode: OFF
Calibration signal, Hz: 1000
Polarity: correct/correct
Frequency response
From 20 Hz to 20 kHz, dB, -0.19, +0.01; -0.18, +0.02
From 40 Hz to 15 kHz, dB, -0.06, +0.01; +0.05, +0.02

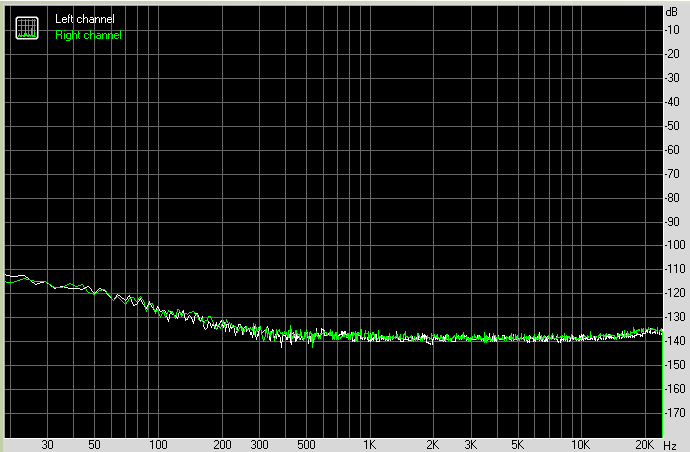

Noise level
RMS power, dB: -103.5, -102.8
RMS power (A-weighted), dB: -106.2, -105.5
Peak level, dB FS: -73.6, -73.4
DC offset, %: +0.0, +0.0

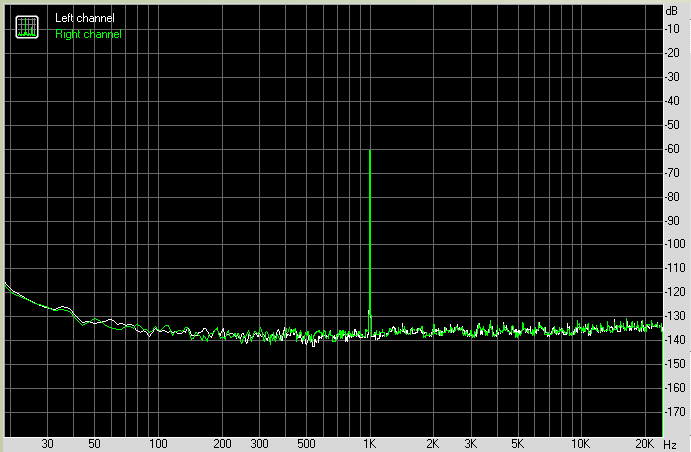

Dynamic range
Dynamic range, dB: +103.5, +103.4
Dynamic range (A-weighted), dB: +104.8, +104.7
DC offset, %: -0.00, -0.00

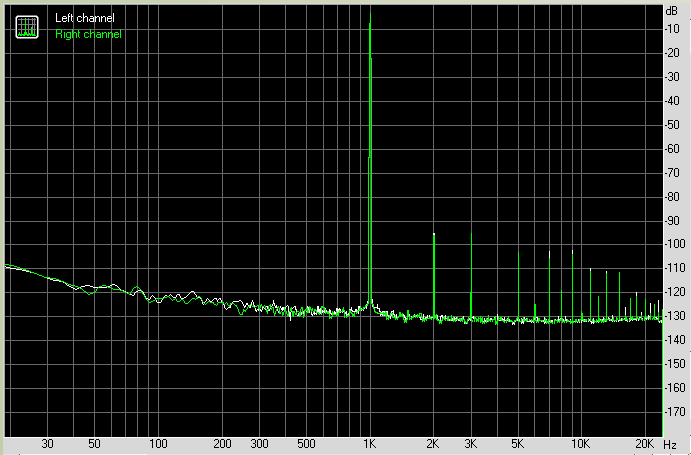

THD + Noise (at -3 dB FS)
THD, %: 0.00358, 0.00378
THD + Noise, %: 0.00421, 0.00441
THD + Noise (A-weighted), %: 0.00479, 0.00512

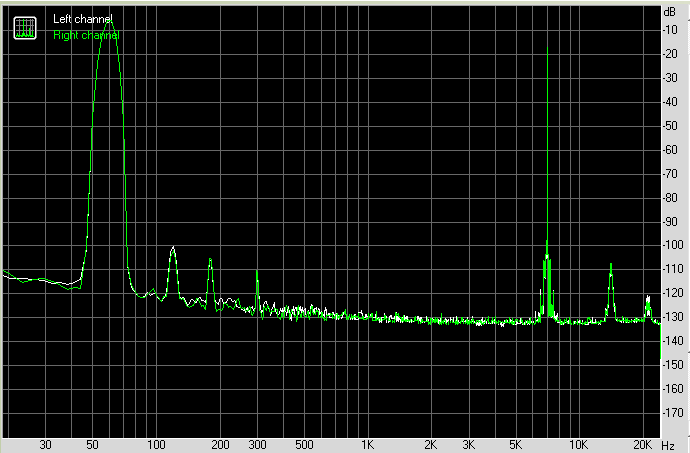

Intermodulation distortion
IMD + Noise, %: 0.00421, 0.00421
IMD + Noise (A-weighted), %: 0.00331, 0.00341
Stereo crosstalk
Crosstalk at 100 Hz, dB: -86, -91
Crosstalk at 1000 Hz, dB: -87, -92
Crosstalk at 10000 Hz, dB: -80, -81

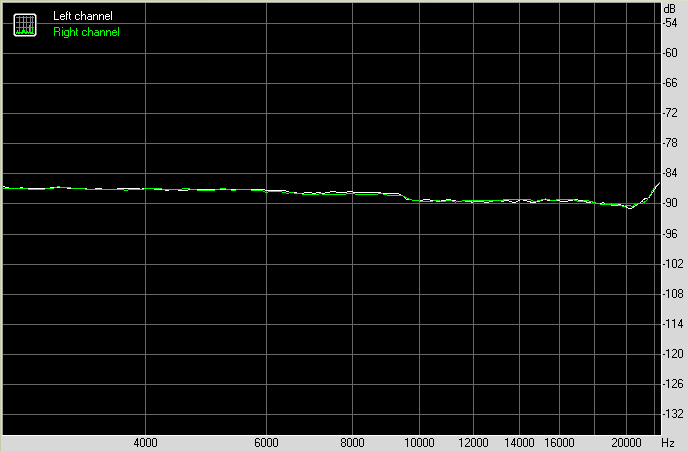

IMD (swept tones)
IMD + Noise at 5000 Hz: 0.00440, 0.00431
IMD + Noise at 10000 Hz: 0.00339, 0.00338
IMD + Noise at 15000 Hz: 0.00339, 0.00344
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.01, -0.06 - Excellent
Noise level, dB (A): -105.9 - Excellent
Dynamic range, dB (A): 104.8 - Excellent
THD, %: 0.00368 - Very good
THD + Noise, dB (A): -86.1 - Good
IMD + Noise, %: 0.00421 - Excellent
Stereo crosstalk, dB: -90.4 - Excellent
IMD at 10 kHz, %: 0.00372 - Excellent
General performance: Very good
