Page 5 - 16-bit/48 kHz Frequency Analysis
Frequency response
From 20 Hz to 20 kHz, dB: -0.05, +0.03
From 40 Hz to 15 kHz, dB: -0.00, +0.03

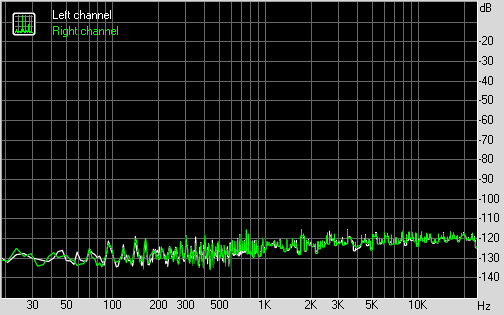

Noise level
RMS power, dB: -92.1, -92.1
RMS power (A-weighted), dB: -93.0, -93.0
Peak level, dB FS: -79.3, -79.3
DC offset, %: -0.0, -0.0

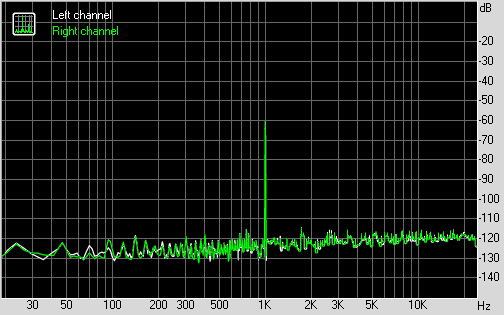

Dynamic range
Dynamic range, dB: +92.1. +92.0
Dynamic range (A-weighted), dB: +93.0, +92.9
DC offset, %: -0.00, -0.00

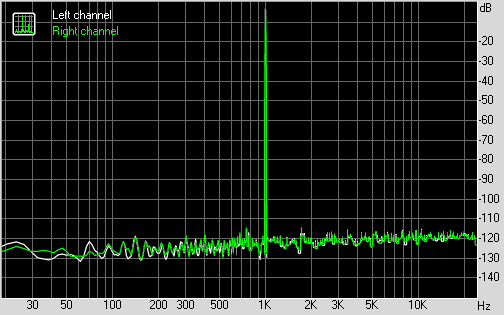

THD + Noise (at -3 dB FS)
THD, %: +0.0008, +0.0008
THD + Noise, %: +0.0050, +0.0050
THD + Noise (A-weighted), %: +0.0045, +0.0045

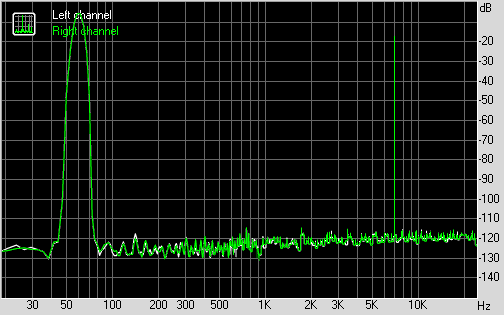

Intermodulation distortion
IMD + Noise, %: +0.0061, +0.0061
IMD + Noise (A-weighted), %: +0.0054, +0.0054
Stereo crosstalk
Crosstalk at 100 Hz, dB: -99, -97
Crosstalk at 1000 Hz, dB: -92, -91
Crosstalk at 10000 Hz, dB: -88, -88

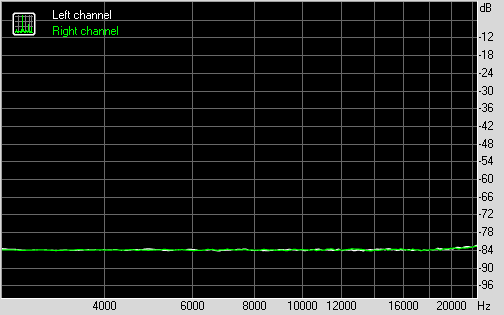

IMD (swept tones)
IMD + Noise at 5000 Hz: 0.0066, 0.0064
IMD + Noise at 10000 Hz: 0.0064, 0.0065
IMD + Noise at 15000 Hz: 0.0067, 0.0064
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.00 - Excellent
Noise level, dB (A): -93.0 - Very good
Dynamic range, dB (A): 93.0 - Very good
THD, %: 0.0008 - Excellent
THD + Noise, dB (A): -87.0 - Good
IMD + Noise, %: 0.0061 - Excellent
Stereo crosstalk, dB: -92.4 - Excellent
IMD at 10 kHz, %: 0.0065 - Excellent
General performance: Excellent
