Page 9 - 24-bit/48 kHz Frequency Analysis
Frequency response
From 20 Hz to 20 kHz, dB: -0.05, +0.03
From 40 Hz to 15 kHz, dB: -0.00, +0.03
Noise level
RMS power, dB: -400.0, -400.0
RMS power (A-weighted), dB: -400.0, -400.0
Peak level, dB FS: -400.0, -400.0
DC offset, %: +0.0, +0.0
Dynamic range
Dynamic range, dB: +130.7, +130.8
Dynamic range (A-weighted), dB: +130.4, +130.4
DC offset, %: -0.00, -0.00
THD + Noise (at -3 dB FS)
THD, %: +0.0000, +0.0000
THD + Noise, %: +0.0001, +0.0001
THD + Noise (A-weighted), %: +0.0001, +0.0001

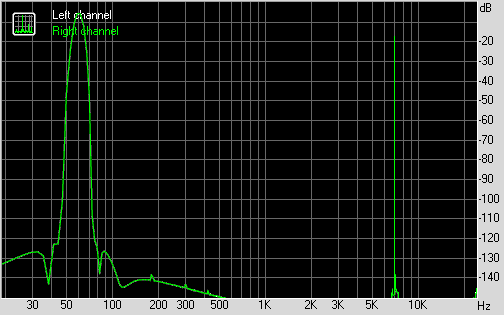

Intermodulation distortion
IMD + Noise, %: +0.0002, +0.0002
IMD + Noise (A-weighted), %: +0.0001, +0.0001
Stereo crosstalk
Crosstalk at 100 Hz, dB: -363, -363
Crosstalk at 1000 Hz, dB: -363, -363
Crosstalk at 10000 Hz, dB: -363, -363
IMD (swept tones)
IMD + Noise at 5000 Hz: 0.0001, 0.0001
IMD + Noise at 10000 Hz: 0.0001, 0.0001
IMD + Noise at 15000 Hz: 0.0001, 0.0001
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.00 - Excellent
Noise level, dB (A): -400.0 - Excellent
Dynamic range, dB (A): 130.4 - Excellent
THD, %: 0.0000 - Excellent
THD + Noise, dB (A): -124.8 - Excellent
IMD + Noise, %: 0.0002 - Excellent
Stereo crosstalk, dB: -364.0 - Excellent
IMD at 10 kHz, %: 0.0001 - Excellent
General performance: Excellent
