Page 7 - 16-bit/192 kHz Frequency Analysis
Frequency response
From 20 Hz to 20 kHz, dB: -0.08, +0.03
From 40 Hz to 15 kHz, dB: -0.08, +0.03

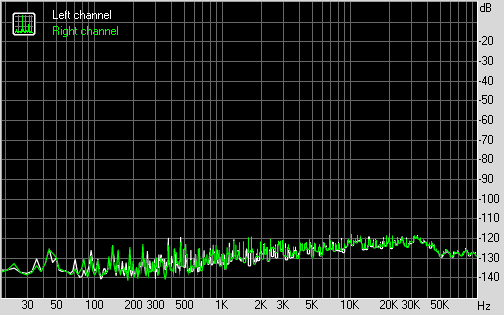

Noise level
RMS power, dB: -97.6, -97.6
RMS power (A-weighted), dB: -98.6, -98.5
Peak level, dB FS: -82.4, -79.4
DC offset, %: -0.0, -0.0

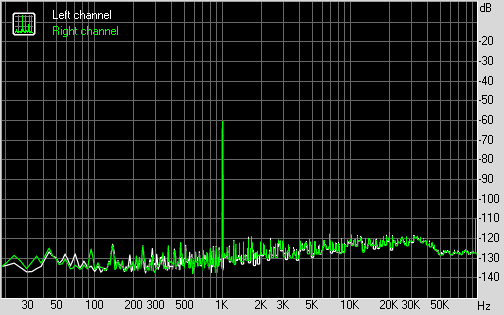

Dynamic range
Dynamic range, dB: +97.5, +97.6
Dynamic range (A-weighted), dB: +98.5, +98.5
DC offset, %: -0.00, -0.00

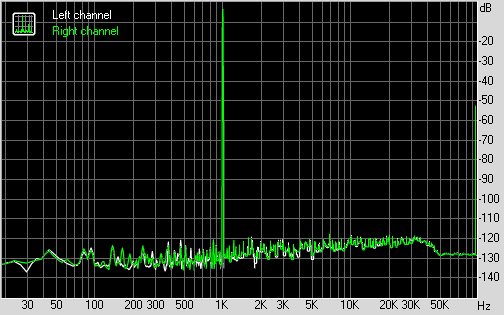

THD + Noise (at -3 dB FS)
THD, %: +0.0007, +0.0006
THD + Noise, %: +0.0027, +0.0027
THD + Noise (A-weighted), %: +0.0024, +0.0024
Intermodulation distortion
IMD + Noise, %: +0.0032, +0.0032
IMD + Noise (A-weighted), %: +0.0029, +0.0029
Stereo crosstalk
Crosstalk at 100 Hz, dB: -97, -94
Crosstalk at 1000 Hz, dB: -95, -95
Crosstalk at 10000 Hz, dB: -89, -89

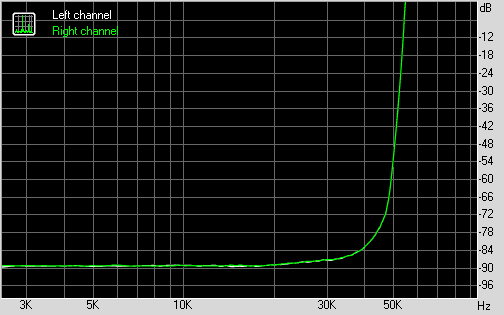

IMD (swept tones)
IMD + Noise at 5000 Hz: 0.0034, 0.0035
IMD + Noise at 10000 Hz: 0.0035, 0.0034
IMD + Noise at 15000 Hz: 0.0034, 0.0035
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.08 - Excellent
Noise level, dB (A): -98.5 - Excellent
Dynamic range, dB (A): 98.5 - Excellent
THD, %: 0.0007 - Excellent
THD + Noise, dB (A): -92.5 - Very good
IMD + Noise, %: 0.0032 - Excellent
Stereo crosstalk, dB: -96.1 - Excellent
IMD at 10 kHz, %: 0.0034 - Excellent
General performance: Very good
