Page 11 - 24-bit/192 kHz Frequency Analysis
Frequency response
From 20 Hz to 20 kHz, dB: -0.08, +0.03
From 40 Hz to 15 kHz, dB: -0.08, +0.03
Noise level
RMS power, dB: -144.1, -143.9
RMS power (A-weighted), dB: -143.4, -143.3
Peak level, dB FS: -134.9, -130.6
DC offset, %: -0.0, -0.0
Dynamic range
Dynamic range, dB: +134.0, +134.0
Dynamic range (A-weighted), dB: +133.1, +133.1
DC offset, %: -0.00, -0.00
THD + Noise (at -3 dB FS)
THD, %: +0.0000, +0.0000
THD + Noise, %: +0.0000, +0.0000
THD + Noise (A-weighted), %: +0.0000, +0.0000

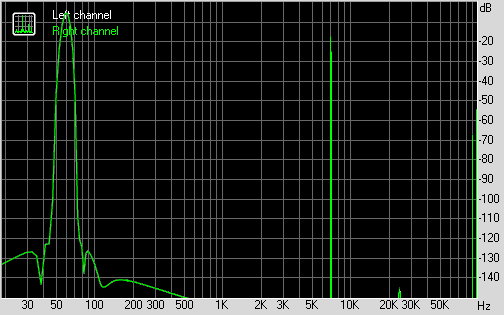

Intermodulation distortion
IMD + Noise, %: +0.0002, +0.0002
IMD + Noise (A-weighted), %: +0.0001, +0.0001
Stereo crosstalk
Crosstalk at 100 Hz, dB: -141, -146
Crosstalk at 1000 Hz, dB: -136, -138
Crosstalk at 10000 Hz, dB: -139, -139
IMD (swept tones)
IMD + Noise at 5000 Hz: 0.0000, 0.0000
IMD + Noise at 10000 Hz: 0.0000, 0.0000
IMD + Noise at 15000 Hz: 0.0000, 0.0000
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.08 - Excellent
Noise level, dB (A): -143.4 - Excellent
Dynamic range, dB (A): 133.1 - Excellent
THD, %: 0.0000 - Excellent
THD + Noise, dB (A): -127.6 - Excellent
IMD + Noise, %: 0.0002 - Excellent
Stereo crosstalk, dB: -137.8 - Excellent
IMD at 10 kHz, %: 0.0000 - Excellent
General performance: Very good
