Page 4 - Benchmark: ATTO Disk Benchmark
About ATTO Disk Benchmark
The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.
From: Developer's Page
Following up next are our usual ATTO read and write tests. ATTO is an often-quoted benchmark because it is easy to use and accurate. For the most part, it is a favorite among reviewers, and I have grown to embrace it as much as the next for the last little while. ATTO uses easily compressible data, so compression-heavy controllers will perform very well here.

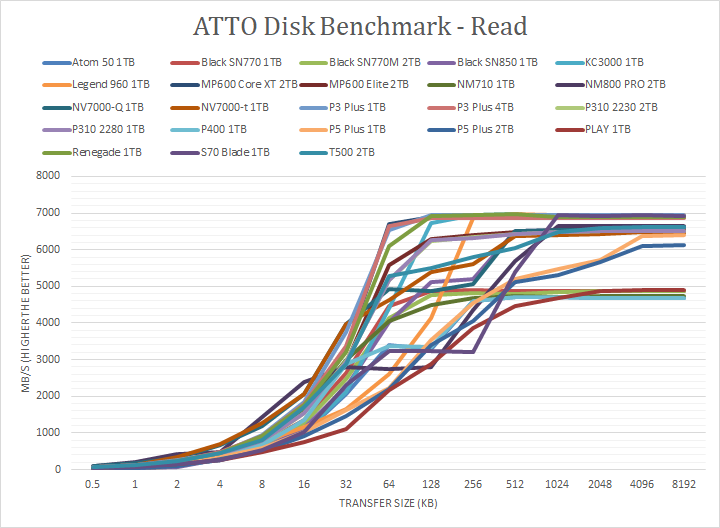

As far as the Phison PS5027-E27 controller on the P310 2280 1TB is concerned, well, here are our results. The Crucial P310 2280 1TB peaked at 6510MB/s read and 5890MB/s write. Under the read curve, it could not keep up with the Corsair MP600 Elite 2TB until 16K, even though they both use the same Phison controller. The Netac NV7000-Q 1TB was also faster than the P310 2280 1TB until 32K. However, Crucial's latest mainstream SSD was significantly faster than the WD_BLACK SN770 1TB across the board. There was no discernible difference between the P310 2230 2TB and P310 2280 1TB in the results.

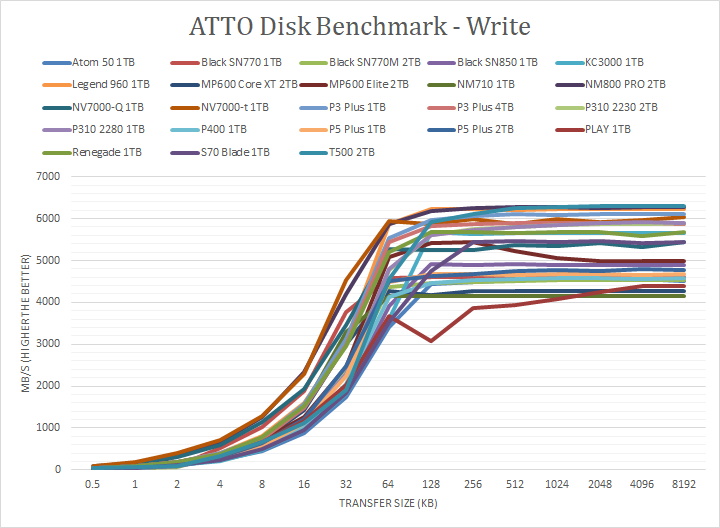

Under the write curve, the Crucial P310 2280 1TB was almost identical to the Corsair MP600 Elite 2TB up to 32K. The P310 2280 was significantly faster than the WD_BLACK SN770 1TB pretty much the entire test, but did not pull ahead of the Netac NV7000-Q 1TB until 128K. Once again, there was no discernible difference between the P310 2280 1TB and P310 2230 2TB in ATTO. Overall, the Crucial P310 2280 1TB's performance was pretty good for a mainstream drive, thanks to the fast PCIe 4.0 interface.
