Page 11 - Onboard Sound (RMAA 6.2.3) Analyzation
Gigabyte did not make any particular claims about high performance integrated audio with the GA-P55A-UD6 motherboard. The Realtek ALC889 high definition audio codec may seem all so common, but it's always interesting to test and see how it really performs combined with the supplied DAC, EMI shielding, and the such. The Gigabyte GA-P55A-UD6's onboard audio even has support for Dolby Home Theater! Let's run it through RMAA 6.2.3 and see how it sounds (No pun intended, haha).
Test Information:
Testing device: Speakers (Realtek High Definition Audio)
Sampling mode: 16-bit, 48 kHz
Interface: DirectSound
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.2.3
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -0.3 dB / -0.4 dB
Mono mode: OFF
Calibration signal, Hz: 1000
Polarity: correct/correct
Frequency response
From 20 Hz to 20 kHz, dB: -0.08, +0.03
From 40 Hz to 15 kHz, dB: -0.08, +0.03
Noise level
RMS power, dB: -90.2, -90.2
RMS power (A-weighted), dB: -91.4, -91.4
Peak level, dB FS: -73.2, -73.2
DC offset, %: -0.0, -0.0
Dynamic range
Dynamic range, dB: +90.0, +90.1
Dynamic range (A-weighted), dB: +91.2, +91.4
DC offset, %: -0.00, +0.00
THD + Noise (at -3 dB FS)
THD, %: +0.0065, +0.0063
THD + Noise, %: +0.0089, +0.0087
THD + Noise (A-weighted), %: +0.0101, +0.0099
Intermodulation distortion
IMD + Noise, %: +0.0092, +0.0092
IMD + Noise (A-weighted), %: +0.0078, +0.0078
Stereo crosstalk
Crosstalk at 100 Hz, dB: -88, -85
Crosstalk at 1000 Hz, dB: -88, -90
Crosstalk at 10000 Hz, dB: -87, -87

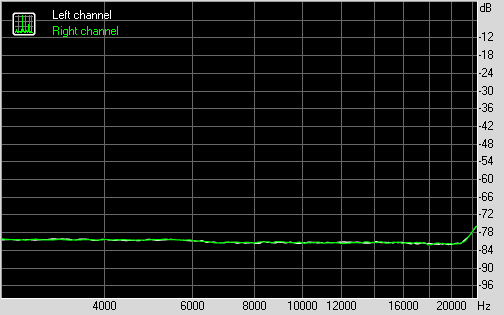

IMD (swept tones)
IMD + Noise at 5000 Hz: 0.0095, 0.0096
IMD + Noise at 10000 Hz: 0.0084, 0.0084
IMD + Noise at 15000 Hz: 0.0085, 0.0084
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.08 - Excellent
Noise level, dB (A): -91.4 - Very good
Dynamic range, dB (A): 91.3 - Very good
THD, %: 0.0064 - Very good
THD + Noise, dB (A): -80.0 - Good
IMD + Noise, %: 0.0092 - Very good
Stereo crosstalk, dB: -89.9 - Excellent
IMD at 10 kHz, %: 0.0088 - Very good
General performance: Very good
