Jetway NF81-T56N-LF Review (Page 11 of 12)

Page 11 - Onboard Sound (RMAA 6.2.3) Analyzation

Jetway does not talk too much about the onboard VIA VT1705 6-Channel HD audio codec, and there was no information to be found on VIA's website either. But let's see how well it performs in our RightMark Audio Analyzer tests.

Test Information:

Testing device: Speakers (VIA High Definition Audio)
Sampling mode: 16-bit, 48 kHz
Interface: MME
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.2.3
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -2.0 dB / -1.9 dB
Mono mode: OFF
Calibration signal, Hz: 1000
Polarity: correct/correct

Frequency response

From 20 Hz to 20 kHz, dB: -0.56, +0.13
From 40 Hz to 15 kHz, dB: -0.15, +0.12

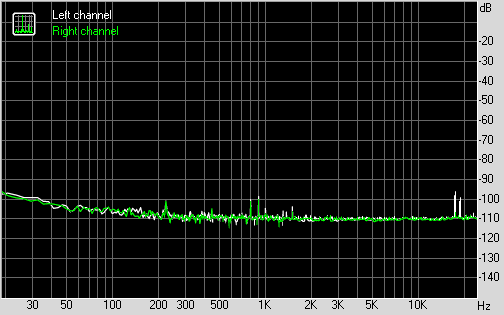

Noise level

RMS power, dB: -75.4, -76.5
RMS power (A-weighted), dB: -77.1, -77.7
Peak level, dB FS: -61.0, -62.2
DC offset, %: -0.0, -0.0

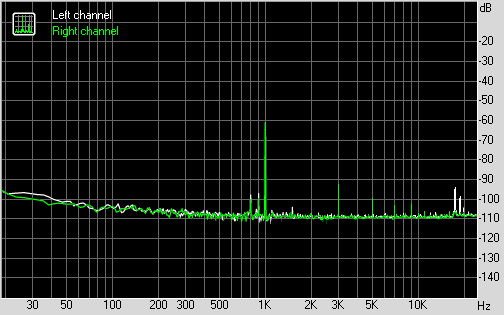

Dynamic range

Dynamic range, dB: +75.3, +76.4
Dynamic range (A-weighted), dB: +77.0, +77.4
DC offset, %: +0.00, +0.00

THD + Noise (at -3 dB FS)

THD, %: +0.0057, +0.0051
THD + Noise, %: +0.0335, +0.0309
THD + Noise (A-weighted), %: +0.0287, +0.0273

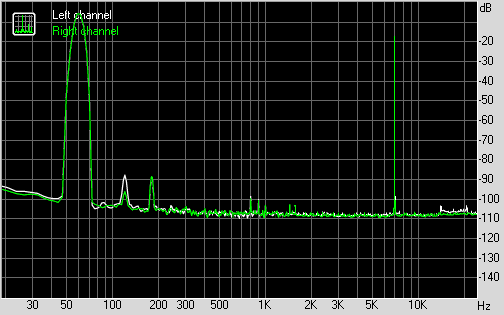

Intermodulation distortion

IMD + Noise, %: +0.0427, +0.0386
IMD + Noise (A-weighted), %: +0.0350, +0.0335

Stereo crosstalk

Crosstalk at 100 Hz, dB: -75, -72
Crosstalk at 1000 Hz, dB: -76, -75
Crosstalk at 10000 Hz, dB: -74, -74

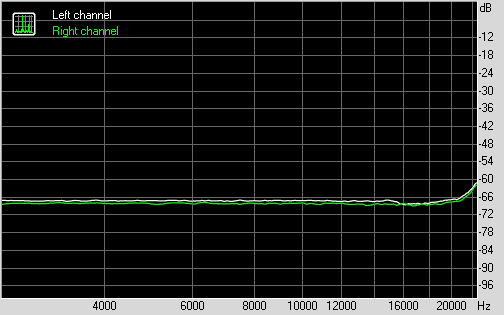

IMD (swept tones)

IMD + Noise at 5000 Hz: 0.0438, 0.0382
IMD + Noise at 10000 Hz: 0.0438, 0.0400
IMD + Noise at 15000 Hz: 0.0441, 0.0378

Test Summary:

Frequency response (from 40 Hz to 15 kHz), dB: +0.12, -0.15 - Very good
Noise level, dB (A): -77.4 - Average
Dynamic range, dB (A): 77.2 - Average
THD, %: 0.0054 - Very good
THD + Noise, dB (A): -71.1 - Average
IMD + Noise, %: 0.041 - Good
Stereo crosstalk, dB: -76.1 - Very good
IMD at 10 kHz, %: 0.041 - Good
General performance: Good
