Page 4 - Configuration and User Interface, Part I
Those who have owned previous QNAP devices flashed to the latest system software would immediately feel at home with the HS-210. Using QTS version 4.1, this is the same as what is running on the QNAP TS-470. The latest QNAP web configuration GUI takes the power of AJAX up another level; it combines with an extremely clean, smooth, and modern user interface in a virtual desktop environment in your web browser. With a powerful NAS device that offers as many features such as the QNAP HS-210 -- not to mention with tons of new stuff added in every update -- it is very important that a user friendly graphical user interface is implemented. And thanks to the excellent QTS 4.1 web interface, it not only excels in functionality, but also in speed and feel. QNAP's previous interface is already among the best I've seen for a network attached storage device, but the latest takes it up an entire new level. Generally speaking, it has all the features you want in a NAS box, yet it doesn't take some sort of post-secondary degree just to get it up and running!

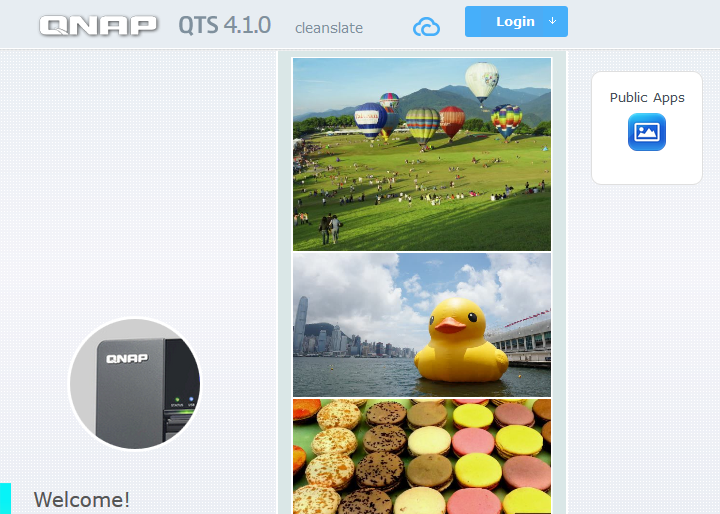

After your system has been initialized, fire up your web browser of choice, and type in your server's name, or your HS-210's LAN IP address once again. You will be immediately greeted by its main screen. The main screen is pretty graphics heavy for a little more eye candy. To start, hit the "Login" button at the top right corner, and a dialog box will appear. Enter your username and password, and you will have two additional options: Remember Me and Secure Login. Everything else is placed on your desktop after logging in.

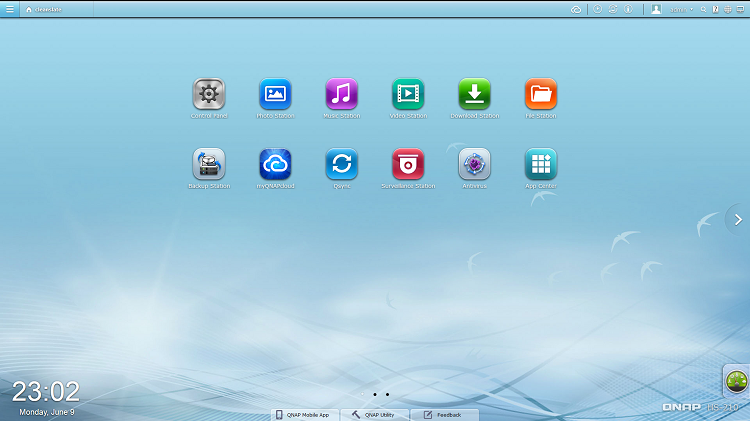

As aforementioned, the layout of its administration panel has been completely redesigned. The sleek, clean browser based desktop interface is powered by AJAX menus for snappy performance and convenience. At the top is a toolbar that is kind of like a fusion of a traditional Windows taskbar and Facebook's notification menu. Hitting the button at the top left corner reveals a menu for quick access to your programs or settings; conceptually, it is kind of like a pre-Windows 8.1 Start Menu. Next to the button, by default, an item is already on the taskbar with your server name on it. Clicking it will show the desktop. Additional items will appear on the taskbar once the user opens programs.
As you move towards the right, the Windows-like taskbar becomes more and more like a Facebook notification bar. The three icons to the left of the user is Background Tasks, External Devices, and Notifications, respectively. Clicking on the little cloud will take you to the MyQNAPCloud website. I found the Notifications menu particularly useful; especially when notifying the user of an error such as a disk failure. Clicking on the user will reveal a menu that shows information such as your last login time, and options such as changing your password or restarting the NAS. To the right of the user is Search, Resources, Language, and Desktop Preferences, respectively. These should be pretty self-explanatory options.
The main part of the desktop is a matrix of large icons, which reminds me of Apple's iOS. You can drag the icons around, remove shortcuts, and add your own items here, just like a real desktop. Like iOS, you can have three pages of desktop icons. At the bottom, there are three links to QNAP's website for the user's convenience. The Dashboard can be popped in from the right when clicked, and shows vital system information such as CPU load and HDD health, in which we will go over in just a moment. Meanwhile, a clock resides at the bottom left corner, as you can see in our screenshot above. QNAP's QTS 4.1 desktop concept is very user friendly an intuitive in my opinion.

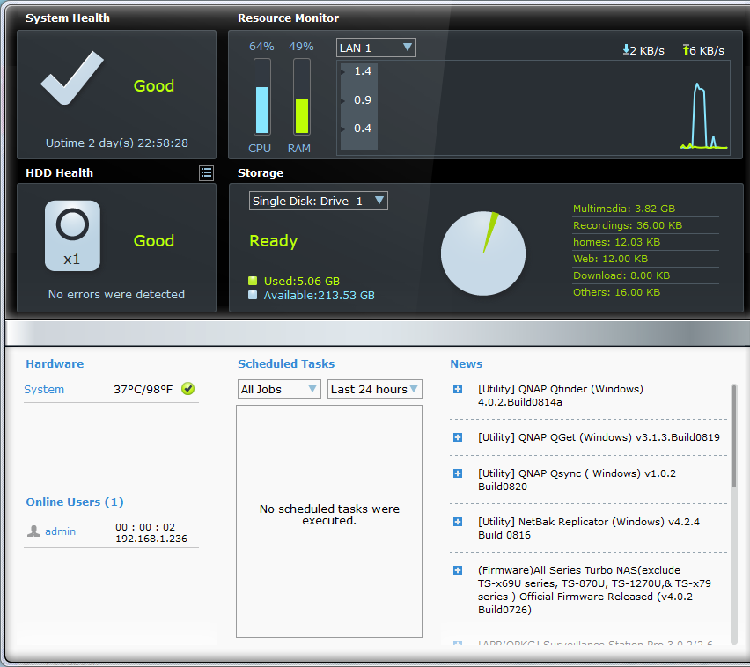

The QTS Dashboard provides a quick view of system status and statistics. At the upper section, the left column gives a high overview of your network attached storage's system and health status. The right column displays statistics in a more concise manner with live AJAX graphs; Instantaneous CPU and RAM usage are displayed in a vertical bar, while network adapter usage is plotted against time. A pie graph showing hard drive usage occupies the second large tile. Different volumes can be selected by a drop down menu. More detailed information such as total disk usage and individual folder usage can be found to the left and right of the pie graph, respectively.
At the bottom half, the hardware system monitor provides information to the system temperature. Online users are also displayed here. A list with filter shows all the scheduled tasks. Finally, a feed containing latest QNAP news can be seen at the bottom right corner. Overall, I found the dashboard to be extremely useful; it provides vital system statistics all in one easy to access screen.

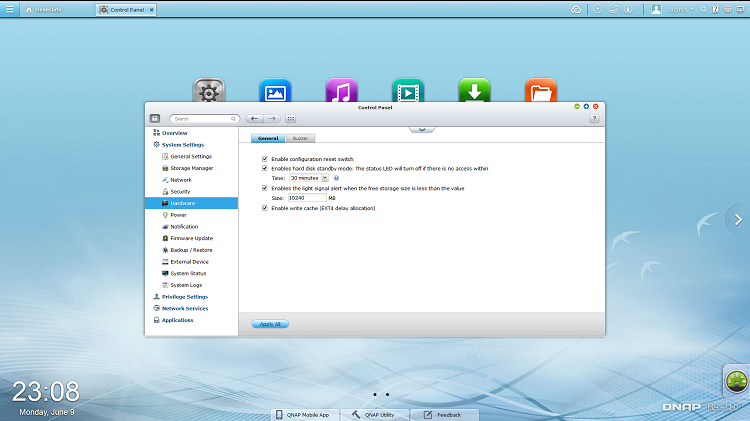

In the control panel, while I won't go over every menu, I'll briefly go over most of them -- since most of them are self explanatory anyway. Expanding the first menu item is System Settings. General Settings allows the user to adjust server name and port, date and time syncing options, as well as non-unicode file name encoding conversion. The Network screen has TCP/IP and DDNS settings. Here you can enable Jumbo Frames. Service Binding allows the system administrator to selectively enable services based on the client connection interface. This is especially beneficial for security and network bandwidth optimization. Under the Security screen are three tabs: Security Level for IP access filtering, Network Access Protection to prevent brute force password attacks for various services, and Certificate and Private Key from a trusted provider. The screenshot above has the Hardware screen shown; permitting the user to configure aspects like disk standby mode and fan speed settings.
Under Power, options are provided to enable or disable Wake On LAN, power state after power failure, and on/off scheduling. The Notifications screen has three tabs: SMTP Server, SMSC Server, and Alert Notification; used to set your QNAP HS-210 to alert the administrator via email and/or mobile text when an error and/or warning occurs. The Firmware Update tab allows the user to manually upload an image or check for an update, but if Live Update is enabled, your QNAP HS-210 will do so automatically; and will prompt you to install it upon logging in.

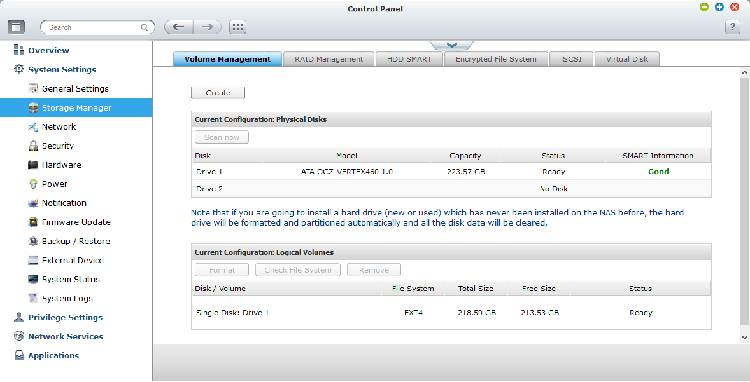

Storage Manager is an important section, so I am going to spend a little more time talking about it. The screen shown above is the Volume Management screen. At the top, a table contains physical information on installed hard drives, as seen in the image above. The Logical Volumes section displays how the disks are configured, along with three options: Format, Check File System, and Remove. The QNAP HS-210 features native support for the EXT4 file system, which we have configured our disks to run on. Our OCZ Vertex 460 240GB SSD shown on the list above is configured in single disk mode. The QNAP HS-210 also has no problems handing newer Advance Format drives.
Under RAID Management, you will have options to play around with your RAID array -- such as expanding capacity, adding a hard drive, migrate, as well as configuring a spare drive.
In the HDD SMART screen are five tabs for the user to easily work with their HDD SMART diagnostic data. Under the Summary tab displays the state of the drive (A big, green "Good" is all you need to see haha), along with information such as hard disk model, capacity, temperature, test time, and test result on the side. The Hard Disk Information tab displays more detailed data, such as your drive's serial number and firmware version. The SMART Information tab provides a summary table on diagnostic results. The Test tab gives the user an option to run a Complete or Rapid test immediately; while the final tab, Settings, can activate or deactivate a temperature alarm, as well as automatic scheduling automatic SMART tests.
The Encrypted File System function is an encryption key management screen for volumes with 256-bit AES encryption enabled. The iSCSI section has options for configuring iSCSI targets and LUN snapshots.
