Page 7 - Benchmark: PassMark PerformanceTest 10

About PassMark PerformanceTest 10

This Advanced Disk Test, which is part of PerformanceTest, measures the data transfer speed when reading or writing data to one or more disks. The speed that data can be transferred between memory and a hard disk drive is one of a system's most important performance aspects. There are quite a few factors which have a bearing on this speed and the Advanced Disk Drive Test allows the user to vary most of these factors and compare the results.

The test supports any drive that can be mounted under Windows. Including IDE drives, SCSI, RAID, USB key drives, SATA, networked shared drives and external drives.

Users have the ability to test multiple drives at the same time using multiple threads, and specify:

- The size of the test file used. Larger files mean that the system cache has less of an effect on the test types, which use caching (see below).
- The size of the data block used for each read or write request. Larger blocks mean less requests and can lead to an improvement in performance.
- The choice of four access methods - C/C++ API, Win32 API cached / uncached and raw disk access.
- Sequential or random access (seeking plus reading and writing)
- Synchronous and Asynchronous access
- The split between reading and writing

The results of all completed tests may be graphed using our custom graphing components.

From: Developer's Page

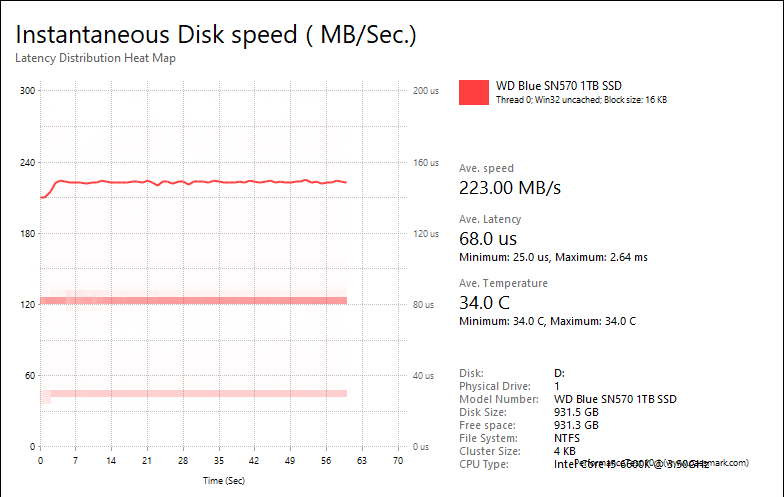

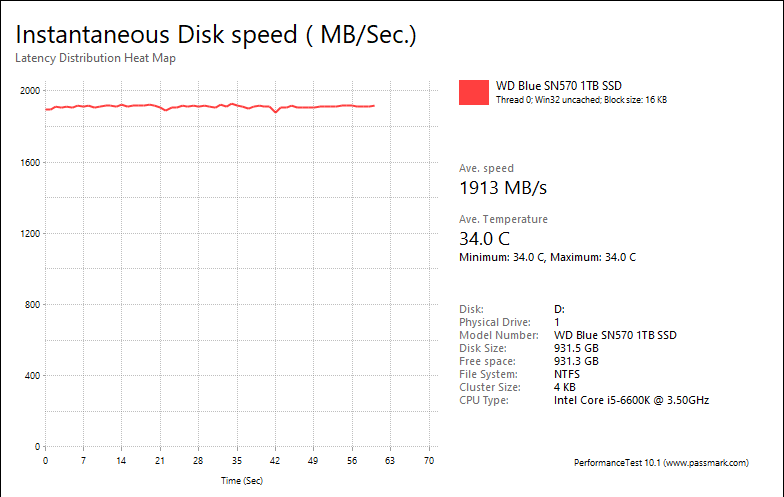

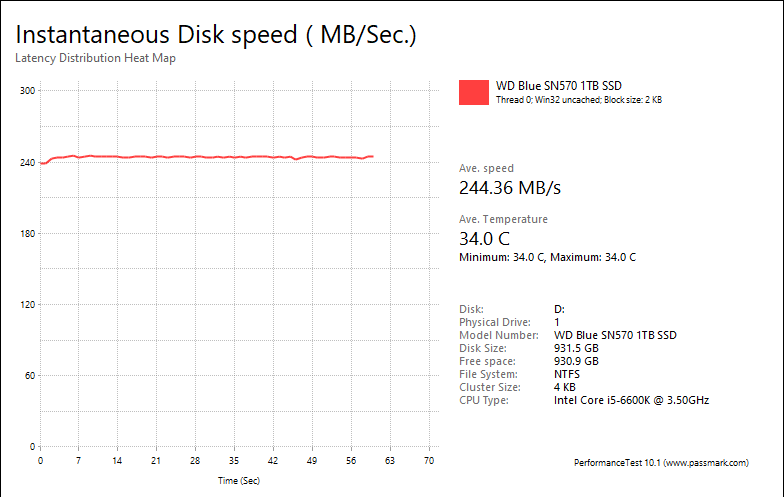

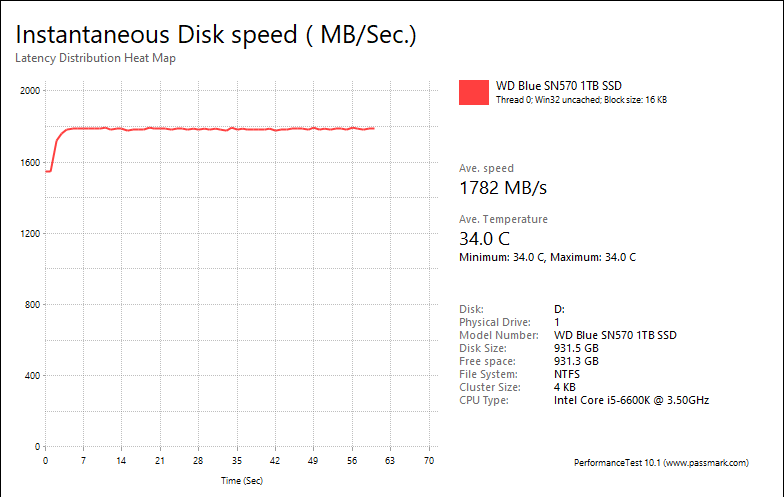

Moving on, PassMark PerformanceTest 10's Advanced Disk Test, unlike HD Tune Pro 5.70, generates some awesome graphs right out of the box. It also provides valuable insight in simulating real world performance applications. To make things clear to you, the first graph simulates a database server, followed by a file server, web server, and workstation. Obviously, PassMark PerformanceTest 10 uses highly compressible data in most tests some controllers can really take advantage of. However, it also requires high IOPS capabilities for the best score.

Overall, this is one test where the Western Digital Blue SN570 NVMe SSD 1TB put up impressive numbers for a budget model. With results of 244.36MB/s, 1782MB/s, 1913MB/s, and 223MB/s, the WD Blue SN570 1TB put up numbers faster than some PCIe 4.0-based drives. This includes the Kingston KC3000 1TB, which had numbers of 149.62MB/s, 1295MB/s, 1403MB/s, and 251.88MB/s, the SN850 1TB at 153.57MB/s, 1191MB/s, 1236MB/s, and 243.03MB/s, and the XPG Gammix S70 Blade 1TB at 151.08MB/s, 1336MB/s, 1458MB/s, and 197.86MB/s. Interestingly enough, the PCIe 3.0-based SN750 1TB came in at 262.43MB/s, 1924MB/s, 2014MB/s, and 185.29MB/s, respectively, which is faster in three of the four tests. The Kingston KC2500 1TB posted results of 215.52MB/s, 1261MB/s, 1607MB/s, and 201.03MB/s, in the same corresponding order.
