Page 8 - Benchmark: PCMark 10
About PCMark 10
PCMark 10 is the latest version in our series of industry standard PC benchmarks. Updated for Windows 10 with new and improved workloads, PCMark 10 is also faster and easier to use.
PCMark 10 features a comprehensive set of tests that cover the wide variety of tasks performed in the modern workplace. With a range of performance tests, custom run options, Battery Life Profile, and new Storage benchmarks, PCMark 10 is the complete PC benchmark for the modern office.
From: Developer's Page
PCMark 10 is the latest version of the popular full system benchmark from UL. We used PCMark 10's Full System Drive Benchmark to test the performance of the drive. According to UL, the Full System Drive Benchmark uses a wide-ranging set of real-world traces from popular applications and common tasks to fully test the performance of the fastest modern drives. The following traces were used and defined as follows:
boo: Booting Windows 10
sacr: Adobe Acrobat - starting the application until usable
saft: Adobe After Effects - starting the application until usable
sill: Adobe Illustrator - starting the application until usable
spre: Adobe Premiere Pro - starting the application until usable
slig: Adobe Lightroom - starting the application until usable
sps: Adobe Photoshop - starting the application until usable
bf: Battlefield V - starting the game until the main menu
cod: Call of Duty Black Ops 4 - starting the game until the main menu
ow: Overwatch - starting the game until main menu
aft: Using Adobe After Effects
exc: Using Microsoft Excel
ill: Using Adobe Illustrator
ind: Using Adobe InDesign
pow: Using Microsoft PowerPoint
psh: Using Adobe Photoshop (heavy use)
psl: Using Adobe Photoshop (light use)
cp1: Copying 4 ISO image files, 20 GB in total, from a secondary drive to the target drive (write test)
cp2: Making a copy of the ISO files (read-write test)
cp3: Copying the ISO to a secondary drive (read test)
cps1: Copying 339 JPEG files, 2.37 GB in total, to the target drive (write test)
cps2: Making a copy of the JPEG files (read-write test)
cps3: Copying the JPEG files to another drive (read test)

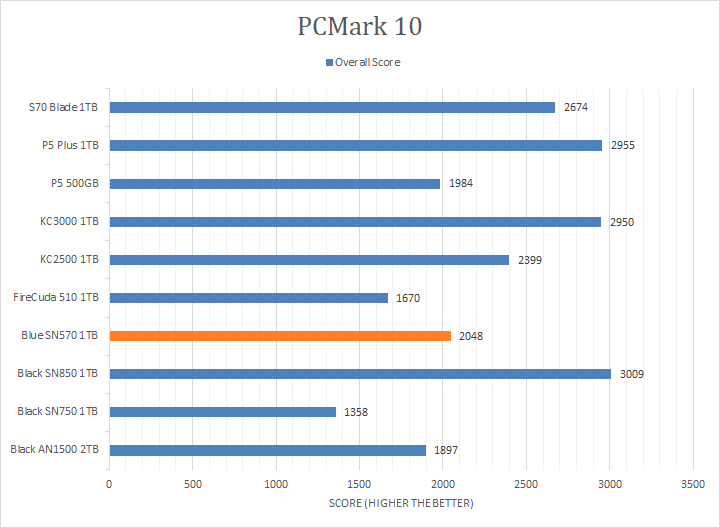

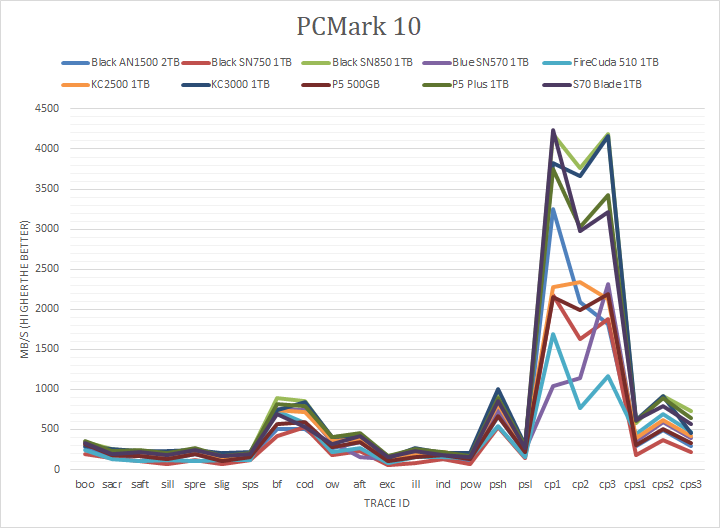

From the two graphs, you can see the Western Digital Blue SN570 NVMe SSD 1TB performed as you might expect for a budget drive. On one hand, it was clearly outmatched by PCIe 4.0 NVMe drives, although this should not be a surprise. It was also handily beat by the Kingston KC2500 1TB. On the other hand, this makes it the second fastest PCIe 3.0 NVMe SSD, even if only slightly. It also produced faster numbers than the WD_BLACK AN1500 2TB, which is probably more questionable for the more expensive drive than for this one. The final score tells most of the story, but the details are also important to read through across the twenty-three traces. In the simulated real-life workloads, the SN570 handily beat other drives like the FireCuda 510 and the Black SN750. You may notice it struggled more in the write specific tests, like cp1 and cps1. This drive traded a bit more evenly with the Crucial P5 500GB, but it still edged out the overall victory.
