Page 10 - Benchmark: EVEREST Memory Latency, HDTach 3.0.1.0
EVEREST Memory Latency
For more information on EVEREST, please read the description on Page 9 of this article.

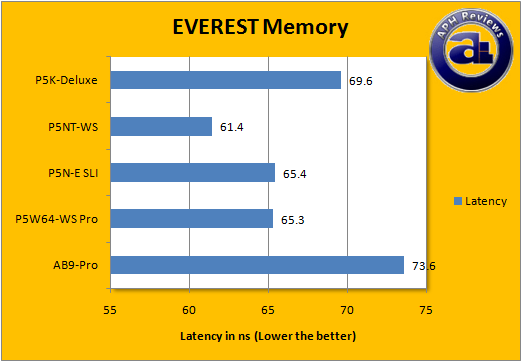

Memory latency can also be improved -- at 69.6ns, it resulted in second last place, just ahead of the abit AB9-Pro.
About HDTach 3.0.1.0
HD Tach will test the sequential read, random access and interface burst speeds of your attached storage device (hard drive, flash drive, removable drive, etc). All drive technologies such as SCSI, IDE/ATA, 1394, USB, SATA and RAID are supported. Test results from HD Tach can be used to confirm manufacturer specs, analyze your system for proper performance, and compare your performance with others. HD Tach is very easy to use, quick, and presents data in easy to read graphs, including the ability to compare two storage devices on screen at the same time for easy analysis.
From: Developer's Site
Click on the above image to enlarge.

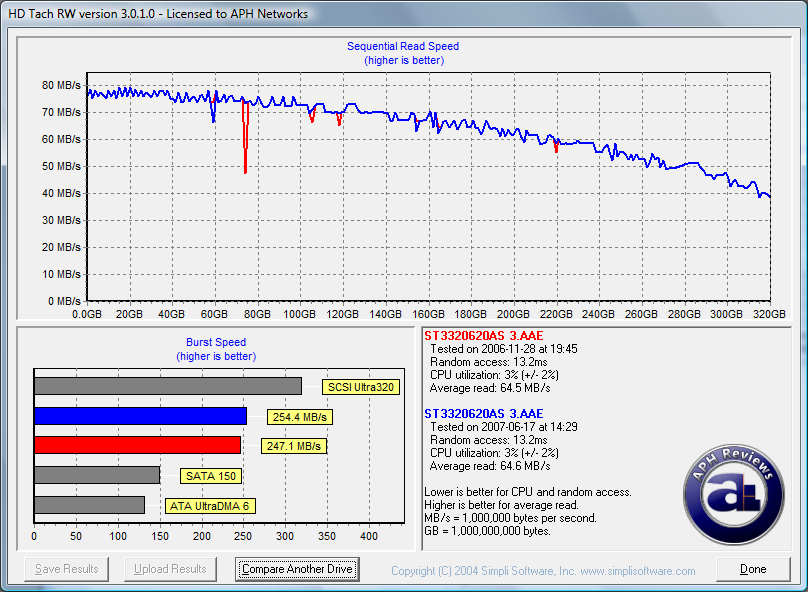

A Long Bench has been run to analyze the SATA2 performance on the Asus P5K-Deluxe. The drive used in our test is a Seagate 7200.10 320GB SATA2 hard drive with 16MB cache built on perpendicular recording technology.
Since the results for ICH7R and ICH8R in HDTach is identical according to our previous tests, we will compare the SATA performance of the Asus P5K-Deluxe against the Asus P5W64-WS Professional -- which resulted in identical performance with the P965/ICH8R based abit AB9-Pro. The blue line shows the Asus P5K-Deluxe (ICH9R) while performance is reflected by the red line for ICH7R/ICH8R performance. Performance is almost identical -- except ICH9R has slightly better burst speed at 254.4 MB/s, while ICH7R/ICH8R both produced a maximum burst of roughly 247 MB/s. When compared to NVIDIA chipsets, the NF430MCP and NF570MCP both had a maximum burst speed of 230.9 MB/s with our test drive.
However, the P5K-Deluxe's ICH9R has an overall average read speed of 64.6 MB/s -- 0.1 MB/s higher than the ICH7R/ICH8R controlled Seagate 7200.10 320GB. This is identical to the performance of NF570MCP at 64.6 MB/s.
Click on the above image to enlarge.

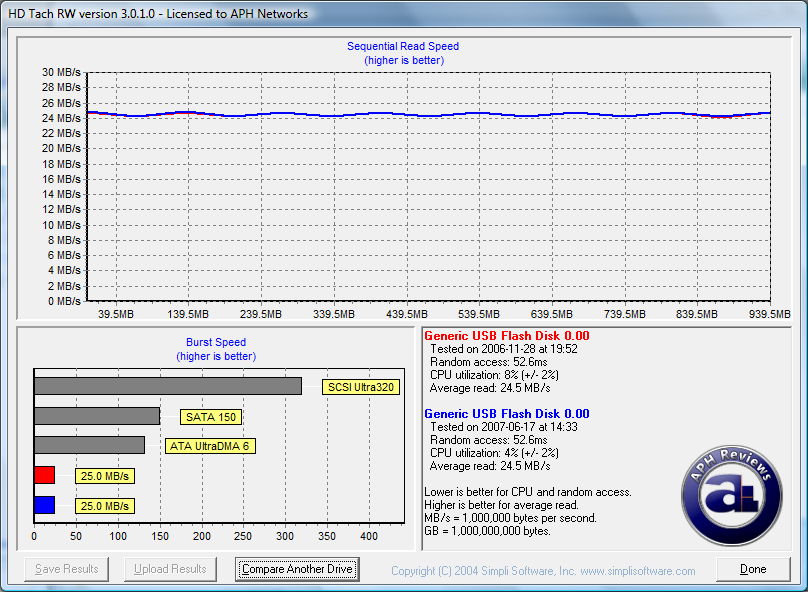

A Full Bench has been run to analyze USB performance. The drive used is a flash drive that we have with the fastest read speed -- and that's the OCZ Rally2.
The blue line represents the Asus P5K-Deluxe, while the red line represents the Asus P5W64-WS Professional. USB performance with the OCZ Rally2 is identical with ICH7R/ICH8R/ICH9R (Possibly due to limits of the drive itself).
