Page 11 - Onboard Sound Frequency Analysis

Gigabyte has a great record of having very good performing integrated audio on their motherboards, and the GA-Z97X-UD3H-BK is advertised to be no exception. It comes with a rear headphone amplifier that can drive up to 800 ohm loads, and comes with a dedicated audio zone electrically separated from the rest of the components to reduce noise. This mainstream performance model uses Realtek's ALC1150 audio codec. To see how it performs, we fired up RightMark Audio Analyzer for the answer, and here is the full report.

Test Information:

Testing device: Speakers (Realtek High Definition Audio)
Sampling mode: 24-bit, 48 kHz
Interface: DirectSound
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.4.0
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -0.5 dB / -0.3 dB
Mono mode: OFF
Calibration singal, Hz: 1000
Polarity: correct/correct

Frequency response

From 20 Hz to 20 kHz, dB: -0.21, +0.08; -0.04, +0.26
From 40 Hz to 15 kHz, dB: -0.04, +0.06; +0.13, +0.24

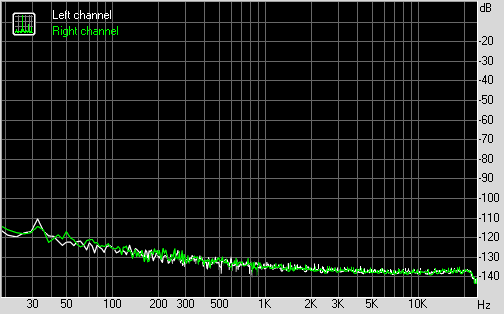

Noise level

RMS power, dB: -102.6, -102.3
RMS power (A-weighted), dB: -104.7, -104.7
Peak level, dB FS: -78.7, -80.8
DC offset, %: -0.0, -0.0

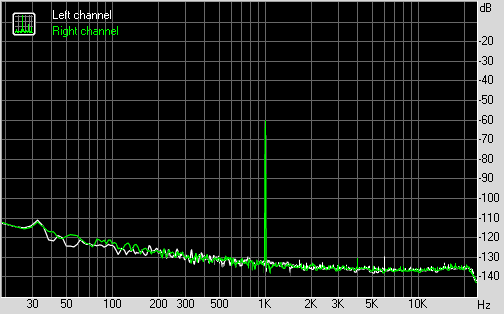

Dynamic range

Dynamic range, dB: +102.7, +102.4
Dynamic range (A-weighted), dB: +104.6, +104.7
DC offset, %: -0.00, -0.00

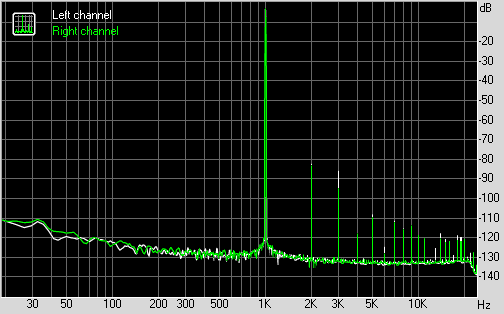

THD + Noise (at -3 dB FS)

THD, %: +0.0133, +0.0101
THD + Noise, %: +0.0134, +0.0103
THD + Noise (A-weighted), %: +0.0176, +0.0133

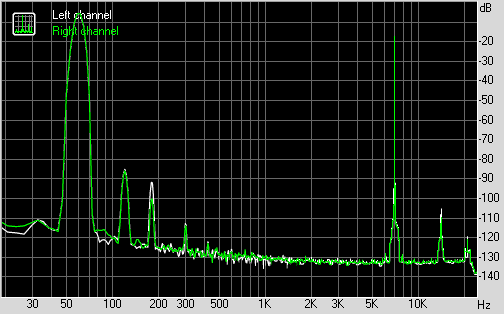

Intermodulation distortion

IMD + Noise, %: +0.0138, +0.0110
IMD + Noise (A-weighted), %: +0.0084, +0.0063

Stereo crosstalk

Crosstalk at 100 Hz, dB: -94, -95
Crosstalk at 1000 Hz, dB: -98, -101
Crosstalk at 10000 Hz, dB: -82, -100

IMD (swept tones)

IMD + Noise at 5000 Hz: 0.0163, 0.0130
IMD + Noise at 10000 Hz: 0.0119, 0.0099
IMD + Noise at 15000 Hz: 0.0134, 0.0118

Test Summary:

Frequency response (from 40 Hz to 15 kHz), dB: +0.24, +0.13 - Excellent
Noise level, dB (A): -104.7 - Excellent
Dynamic range, dB (A): 104.7 - Excellent
THD, %: 0.012 - Good
THD + Noise, dB (A): -76.2 - Average
IMD + Noise, %: 0.012 - Very good
Stereo crosstalk, dB: -100.6 - Excellent
IMD at 10 kHz, %: 0.013 - Very good
General performance: Very good
