Jetway NC84E-LF Review (Page 6 of 12)

Page 6 - Benchmark: EVEREST Memory

About EVEREST Ultimate Edition

EVEREST Ultimate Edition is an industry leading system diagnostics and benchmarking solution for enthusiasts PC users, based on the award-winning EVEREST Technology. During system optimizations and tweaking it provides essential system and overclock information, advanced hardware monitoring and diagnostics capabilities to check the effects of the applied settings. CPU, FPU and memory benchmarks are available to measure the actual system performance and compare it to previous states or other systems. Furthermore, complete software, operating system and security information makes EVEREST Ultimate Edition a comprehensive system diagnostics tool that offers a total of 100 pages of information about your PC.

Memory benchmarking

Memory read and write speed, memory latency measurement to stress the memory and cache subsystem, including reference list to compare actual performance with other systems.

From: Developer's Page

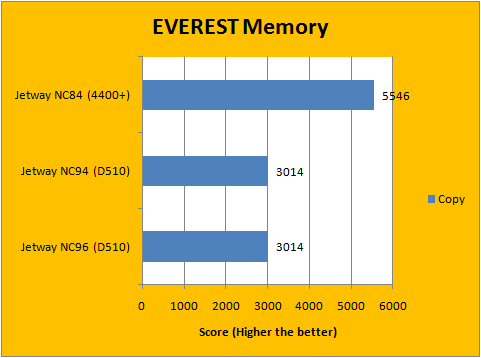

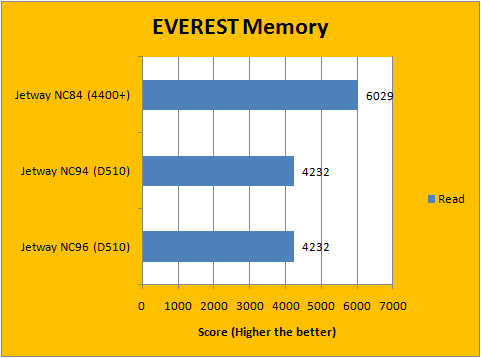

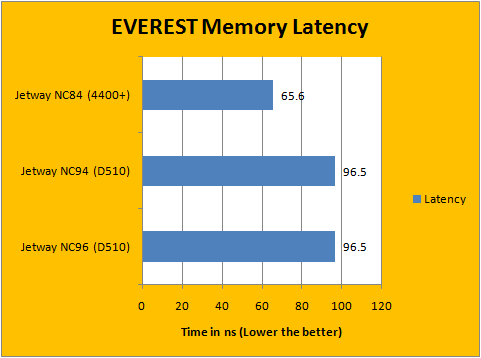

Both the Intel Atom D510 and AMD Athlon 64 X2 4400+ Brisbane has their own integrated memory controller, rather than relying on the Northbridge for this task. AMD has been doing this for years with their processors, while it wasn't until recently that Intel has implemented such technology into their products. Both systems were configured with DDR2-667 memory modules -- albeit not exactly the same ones, since the NC94 and NC96 uses desktop RAM -- but the Athlon 64 X2 with notebook memory handily outperformed the Intel Atom in our EVEREST synthetic memory tests. Furthermore, recorded latency was also significantly better on the AMD based system at 65.6ns, while the Atom D510 based boards posted a time of 96.5ns.
