Page 8 - Benchmark: 3DMark06 Professional
About 3DMark06 Professional
3DMark®06 is the worldwide standard in advanced 3D game performance benchmarking. A fundamental tool for every company in the PC industry as well as PC users and gamers, 3DMark06 uses advanced real-time 3D game workloads to measure PC performance using a suite of DirectX 9 3D graphics tests, CPU tests, and 3D feature tests. 3DMark06 tests include all new HDR/SM3.0 graphics tests, SM2.0 graphics tests, AI and physics driven single and multiple cores or processor CPU tests and a collection of comprehensive feature tests to reliably measure next generation gaming performance today. Futuremark's exclusive Online ResultBrowser web service tracks and compares 3DMark06 scores.
Key 3DMark06 Advanced and Professional Features
- DirectX® 9 3D game performance benchmark
- Includes separate graphics card and CPU tests
- Produces workloads that simulate next generation 3D gaming requirements
- Advanced 3D game engine supports HDR Rendering with SM3.0 Shaders, in addition to SM2.0 Shaders
- Includes two HDR/SM3.0 game tests and two SM2.0 game tests
- CPU performance testing via AI and physics workloads for both single core systems and multi-threaded, multi-core and multiple processor environments
- 3D graphics feature tests include Fill Rate, Pixel Shader, Vertex Shader, SM3.0 tests, and Batch Size tests
From: Developer's Page

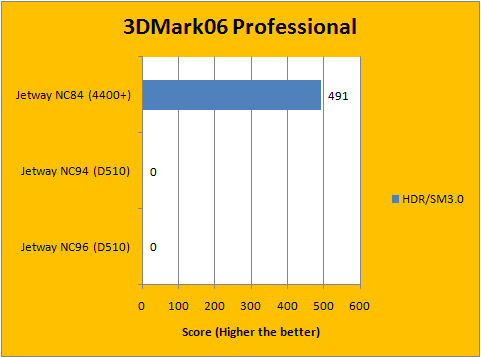

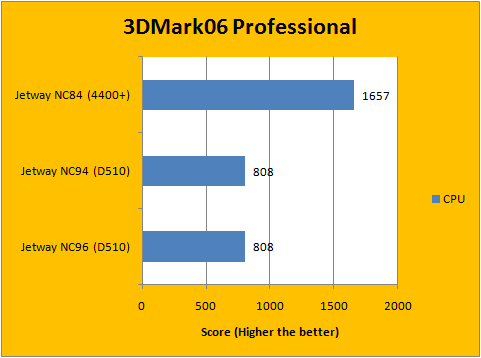

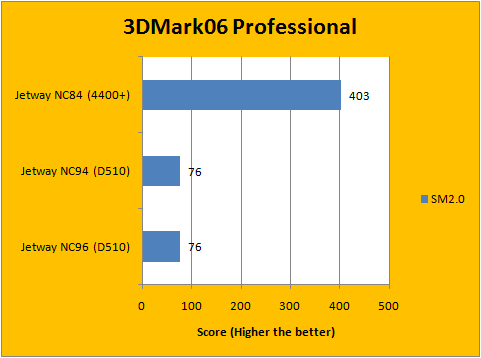

It is fundamental to point out that the Intel Atom D510 processor in conjunction with its integrated GMA 3150 graphics didn't actually complete 3DMark06 in its entirety, because it only has up to DirectX 9 support and no SM3.0 capability. Meanwhile, the DirectX 10.1 compliant ATI Radeon HD 4200 integrated graphics on the Jetway NC84E-LF -- while not exactly what you would call powerful -- made a result of nearly eight times as high as what the D510/GMA 3150 marked up on the chalkboard. This is not a surprising result at all, considering that the latter system is also equipped with a much better performing processor in this area, as demonstrated by our results in the last graph above.
