Page 3 - OSD and Test System

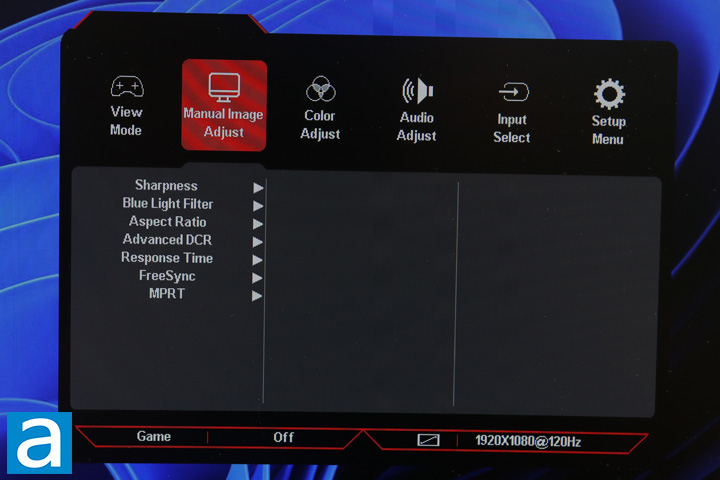

The on-screen display menu of the Yeyian Sigurd Series 2503 can be accessed by pressing the top button at the back of the monitor. The OSD menu is pretty straightforward, and it looks very familiar to the one on my ViewSonic display, albeit with a red and black color scheme. The first tab called View Mode, which primarily affects the color profiles for the monitor. This includes several profiles as you can see. Next, we have a tab labeled "Manual Image Adjust". Different settings, like changing sharpness, dynamic contrast ratio, changing response times, and enabling FreeSync or MPRT.

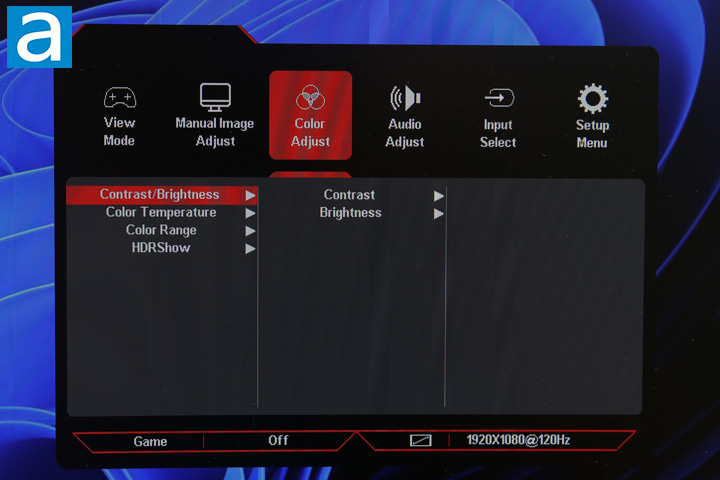

Under "Color Adjust", you can change more standard things like contrast, brightness, color temperature with preset settings, color range, and an item called HDRShow. Enabling this, however, negatively affected the color output, even when trying to enable HDR in Windows, so I ended up leaving it as is. The "Audio Adjust" menu is where you can change the volume or mute the internal speakers in the Yeyian Sigurd Series 2503. "Input Select" lets you choose between the inputs to display on the monitor. Finally, "Setup Menu" is where you can change the on-screen display menu settings as well as other operation settings. Finally, you can fully reset all of your changes in the monitor here.

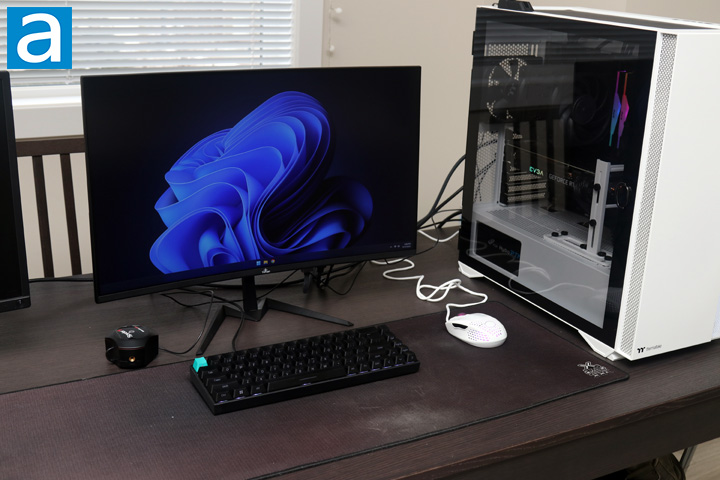

Our test configuration is as follows:
CPU: Intel Core i5-12600K
CPU Cooling: Noctua NH-U12A chromax.black
Motherboard: ASUS ProArt Z690-Creator WiFi
RAM: XPG Lancer RGB DDR5-6000 2x16GB
Graphics: EVGA GeForce RTX 3070 Ti XC3 ULTRA GAMING
Chassis: Thermaltake H700 TG Snow
Storage: XPG Atom 30 1TB
Power: FSP Hydro PTM Pro 1200W
Operating System: Microsoft Windows 11 Pro
