Gigabyte GeForce GTX 560 1GB OC Review (Page 12 of 13)

Page 12 - Power Usage, Temperature, Noise

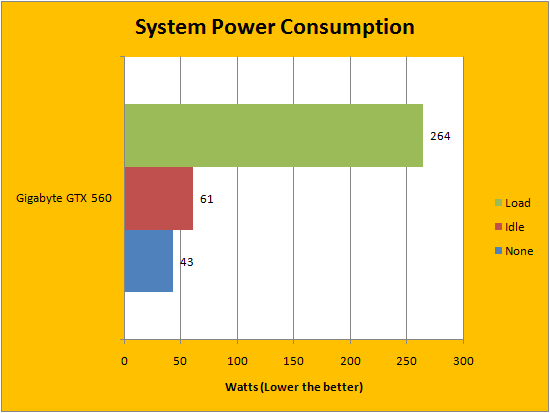

As a base reference, I have included a measurement for the entire system without the graphics card installed. Please note that the load conditions cannot be directly compared against this base value, since the entire system is under load, and as such the CPU will also contribute to the increased power usage. With that in mind, the Gigabyte GeForce GTX 560 1GB's power consumption reached a maximum of 264W load from 61W idle -- a difference of 203W. Somewhat comparable figures can be found in our Gigabyte Radeon HD 6870 1GB SOC review. Gigabyte likes to promote their lower RDS(on) MOSFETs, quality solid capacitors, and low power loss ferrite core design. In the past, I have seen a difference in power consumption as much as 10W against reference cards with regular components. The above results were obtained when running Furmark's stress test, and your graphics card is not likely to see any higher loads -- especially under normal usage.

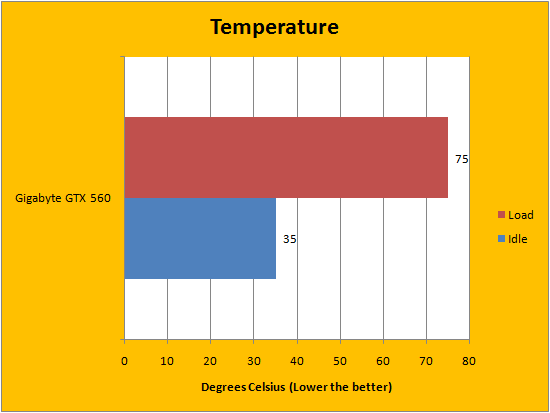

For the purpose of this review, I left the fan on default settings, so its speed is allowed to vary accordingly with temperature. I also wanted to see what the card is capable of doing inside my low airflow chassis configuration. Most people should get better results in real life than our hot running test bench environment. With that in mind, I left the stock paste intact for testing before taking it apart for the photo session on Page 3. Surprisingly, despite the huge amounts of poorly applied paste from the factory, I have noticed little performance difference between what Gigabyte has included with the card and my Arctic Cooling MX-2 paste applied afterwards. Secondly, even under our intense Furmark load tests, the Gigabyte GeForce GTX 560 1GB OC peaked out at 75c; a figure still within heat design limits. It is important to point out this is the worst case scenario -- you will not hit this temperature under normal gaming sessions. Most cases should have better airflow than my configuration anyway. However, I would just like to point out while the Gigabyte Radeon HD 6870 1GB SOC managed the higher load temperatures with the Windforce 3X cooler, but the fan is actually capped at 40% (The GTX 560 is allowed to run up to 100%), and the heatsink installed on the Radeon does not have direct heatpipe contact.

As far as noise is concerned, while this is very subjective, I am quite a picky person on noise, and the loudest component in my entire system is probably my Noctua ultra low noise fans -- and they are not loud at all. You can see my test configuration on the third page of this review. In my opinion, there is no objective measurement of noise, as measuring sound pressure level is often impractical, because human ears are more sensitive to some frequencies than others. On a scale from 0-10 where 0 is silent and 10 is the loudest, I would rate the Gigabyte GeForce GTX 560 1GB OC to be at 2.5/10 at 40% fan speed. 40% is the minimum possible fan speed; which translates to about 1000rpm in practice. The fan will kick up to 100%, or about 2000rpm, at full load. On a scale from 0-10, where 0 is silent and 10 is the loudest, I would rate the Gigabyte GeForce GTX 560 1GB OC to be at 5.5/10 at 100% fan speed. It's not particularly loud, but it loses a few points here, because the fan is not smooth sounding at all at high speed. Once you push it past the 50% mark, it will begin to be audible with a quiet PC configuration.
