Page 3 - Test Results
Our test configuration is as follows:
CPU: Intel Core i5-12600K
Motherboard: ASUS ProArt Z690-Creator WiFi
RAM: Crucial Pro DDR5-5600 2x16GB
Graphics: EVGA GeForce RTX 3070 Ti XC3 ULTRA GAMING
Chassis: Thermaltake Core P3 TG Pro Snow
Storage: XPG Atom 30 1TB
Power: FSP Hydro PTM Pro 1200W
Operating System: Microsoft Windows 11 Pro
Compared hardware:
- DeepCool Mystique 360
- be quiet! Dark Rock Elite
- be quiet! Dark Rock Pro 5
- be quiet! Pure Loop 2 FX 240mm
- be quiet! Pure Rock 2 FX
- Cooler Master MasterLiquid 240 Atmos
- Cooler Master MasterLiquid 240L Core ARGB White
- DeepCool AK620 Digital
- Noctua NH-D12L
- Noctua NH-U12A chromax.black
- Noctua NH-U9S chromax.black
- SilverStone IceMyst 360
- Thermaltake TOUGHLIQUID Ultra 360

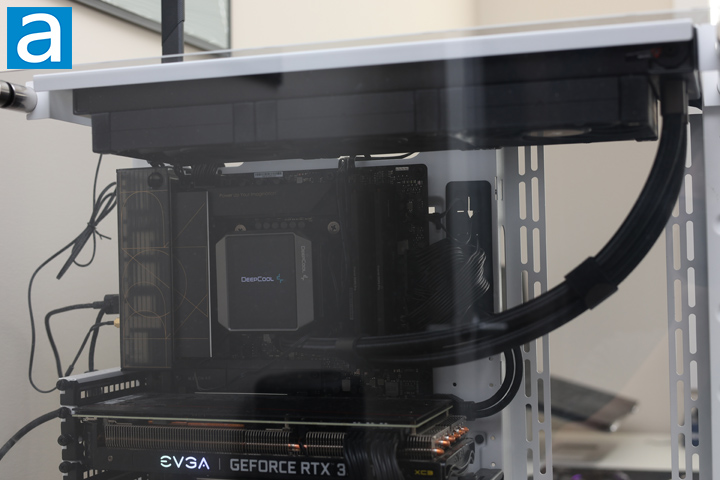

All tests were run on our custom-built computer to best reflect real life performance. The computer remained in the same location in the same room throughout all tests. The room temperature in our testing lab was around 22c. Stock thermal paste respective to all coolers were used to rate its performance. All thermal pastes were given a proper amount of time for them to fully settle. The fans on all heatsinks were connected to the motherboard's CPU 4-pin fan header. The test computer was turned on and left idling for at least one hour for the idling tests. High CPU load results were obtained using the Prime95 in-place large FFTs test with a maximum number of worker threads for the tested CPU for a minimum of 10 minutes or until the temperature was deemed stable. Temperature results were measured with HWiNFO, which reports the CPU's integrated digital thermal sensor for maximum accuracy. Each temperature result was calculated by taking the maximum value of the cores inside the CPU.

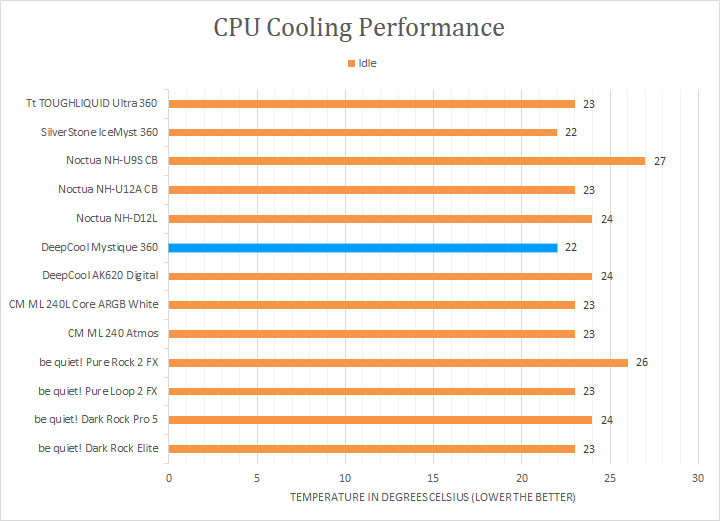

After letting my computer sit idle for a while, I checked the temperature of the processor. From the first graph, you can see the DeepCool Mystique 360 idled at a temperature of 22c. This matched the coolest results, which is great to see. However, idle numbers do not give a full representation of what CPU coolers can do, so we started up the Prime95 tests to see the more pertinent results.

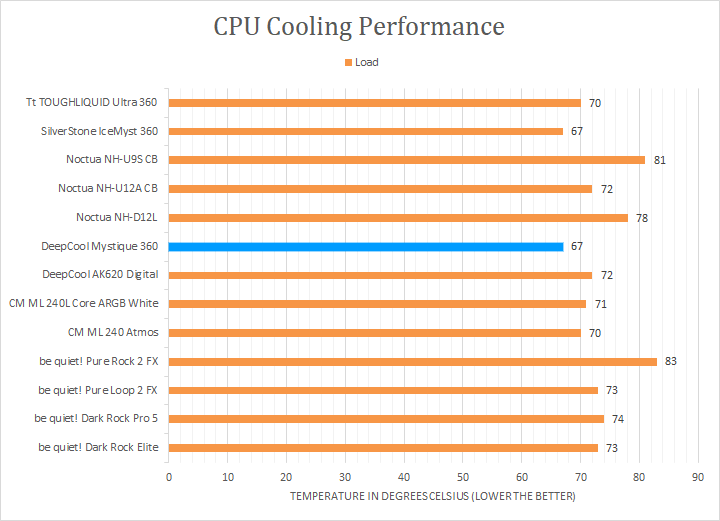

With more than enough time to load the processor, you can see how all the coolers performed with the peak temperatures recorded. From here, the DeepCool Mystique 360 performed very well with a maximum full load temperature of 67c. Compared to other 360mm AIO liquid coolers, the Mystique 360 performed up to the task. It cooled better than our Thermaltake TOUGHLIQUID Ultra 360, and was similar to the SilverStone IceMyst 360. It was also notably better performing than the 240mm options and all of the air coolers, which is great to see. There was no thermal throttling noticed during our tests, as all of the cores were able to reach their boost frequencies.
As for the sound analysis section, on a scale of 0 to 10 where 0 is silence and 10 is very loud, I would rate the DeepCool Mystique 360 at around 6.0/10 under full load and a 5.0/10 idling. The fans were a bit on the louder side, but the prime culprit was a grating noise that I heard from the pump. In some ways, it was even worse during idle, as the fans would not cover this sound as much. Even for those that can handle a bit of noise, this is way more audible than most typical pumps and it was seriously irritating. I did make sure to orient the radiator in different ways in case it was a problem with the placement. While the pump made the least noise when the radiator was mounted above the block, it was still easily heard.
