Page 2 - A Closer Look, Test System

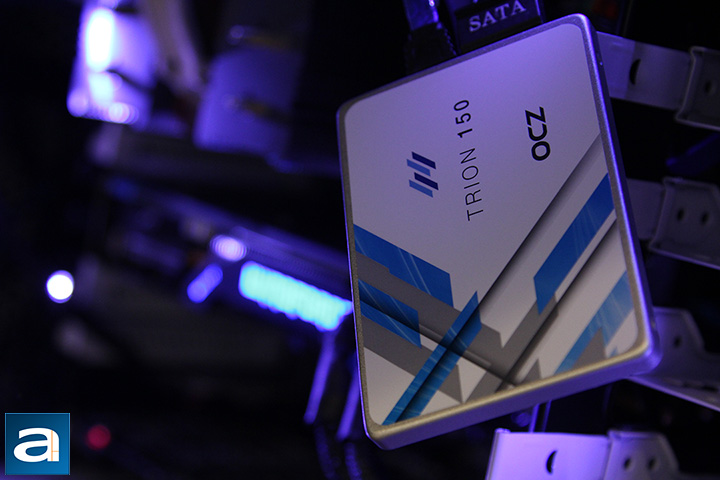

As always, before we move onto the fancy technical details about OCZ's latest value oriented solid state drive based on the Toshiba TC58 controller, let us briefly discuss the physical attributes of this SSD first. The OCZ Trion 150 comes with a facelift over the Trion 100, thanks to a new label design. Featuring rounded corners and a large label with OCZ's branding and logo covering the entire front surface, the graphics on the OCZ Trion 150 480GB is a clean, modern, and good looking. You can discern between product lines based on the color scheme used. This white label on top of the flat aluminum cover is present to ensure the user will make no mistake that this is a Trion 150 series drive, but you will not find its capacity until you look at the back.

Measuring in at 100mm wide, 69.85mm deep, and 7mm tall, its thickness -- or lack thereof -- will ensure wide compatibility. It is also very light at 48g, which is less than half the weight of other OCZ drives we have seen in the past, and the same as its predecessor. OCZ Trion 150 drives will have no problems fitting into your laptop hard disk bay if you want to boost mobile computing performance, considering all new laptops with removable drives have 7mm bays. On the other hand, if you want to use it in your desktop and your chassis has no 2.5" mount, then you will need to find your own solution, since the OCZ Trion 150 comes with no accessories. Nowadays, it is hard to find a case without a 2.5" drive bay, and considering this is a barebones value drive, I am not complaining.

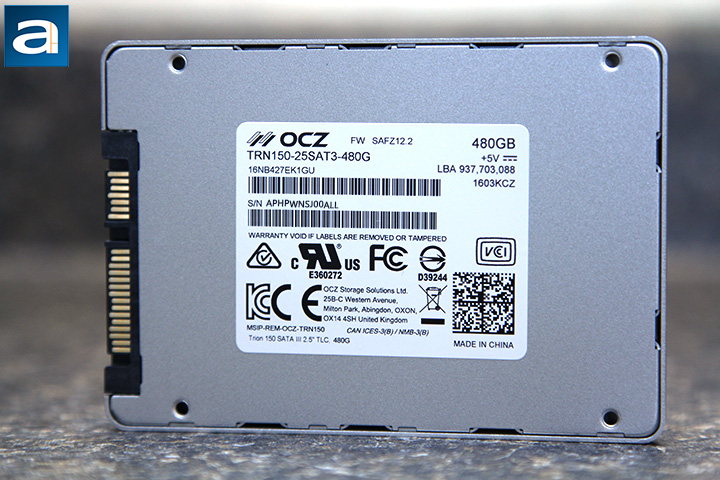

Turning the SSD around reveals a flat metal backplate. This is something users will come to expect from a solid state drive, as there are no exposed printed circuit boards like you would normally see with a traditional hard disk. The only thing that is common between the OCZ Trion 150 480GB SSD and a traditional hard disk drive is its SATA 6Gb/s and corresponding power connector at the end. As shown in our photo above, you will find a large label with the usual series of certification logos, along with information such as the brand, capacity, and serial number. In case you missed it, our particular unit is the OCZ Trion 150 480GB, haha. Unlike other OCZ SSDs, this one is made in China rather than Taiwan, just like the Trion 100.

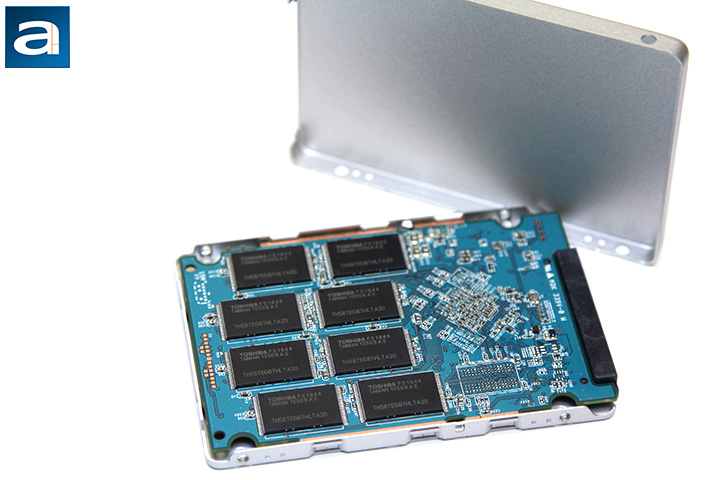

Moving on, the OCZ Trion 150 480GB's shell is attached to the aluminum backplate by friction clips only, just like its predecessor. As aforementioned, a quick pry, and you will be well on your way inside. No screws, no warranty seals; nothing. As such, you will not void your three year ShieldPlus warranty. ShieldPlus is OCZ's term for advance replacement, free return shipping, with no requirement for an original receipt. For an SSD manufacturer, this is one of the best warranty programs available in the market today. In case you are uncomfortable with taking apart your brand new SSD, to save you some trouble, I cracked mine open to take some photos of its internals for you to see. This time, you will see a full sized PCB, as you can see in our photo above.

Like the Trion 100, the Trion 150 is not actually developed by OCZ. OCZ went bankrupt and was purchased by Toshiba in January 2014. Toshiba's share in the SSD market has always been on the OEM side, while OCZ always held a strong retail presence. As a result, the Japanese company allowed its American acquisition to continue business independently until earlier this month when it became a part of Toshiba America Electronic Components, but it did not take long for us to see exclusive use of Toshiba flash memory in all of OCZ's products. Toshiba also helped OCZ with its quality control and product validation, as well as working closely together on new products to optimize available resources between the two. To enter into the ultra-budget solid state drive market, OCZ needed an SSD using triple level cell flash memory to compete. Unfortunately, the Indilinx Barefoot 3 is incompatible, therefore they will need to find a new controller. Meanwhile, Toshiba has already been developing a TLC SSD. With Toshiba's engineering under the hood and OCZ's already established retail presence, the solution is simple: Take Toshiba's SSD, and sell it as an OCZ drive. The OCZ Trion 150 was born.

The heart of OCZ's Trion 150 480GB is the Toshiba TC58 controller. The PCB itself is held secure to the shell by more friction clips. As the drive controller is fundamentally very important to any SSD, let us dig more into the details of its brain.

Unfortunately, there is almost no detail surrounding the TC58 controller. Being traditionally focused on the OEM market, there is not a whole lot of need for Toshiba to let anyone know what is going on under the hood. What we do know is Toshiba has a close working relationship with Phison. Word on the street is the Toshiba TC58 is a Phison S10 loaded with custom firmware, adding features like quasi-SLC caching. The Trion 150 comes with some firmware optimizations, such as direct write to TLC array when the data exceeds the SLC cache, in which the company claims can deliver up to 50% improvement in real life performance.

The funny thing is, there is little we know about the Phison S10 as well. The controller is built on the 55nm fabrication process, and features a 120-bit ECC scheme. In case you are not familiar with the company, Phison is a Taiwanese manufacturer of NAND flash controllers since 2000. In the past, they have focused on non-SSD applications like USB flash drives. The Phison PS3110-S10 is an improved version of the PS3108-S8, which has gained a lot of popularity among manufacturers looking to sell value oriented SSDs due to its low price. The Phison S10 is an eight channel controller with device sleep support, plus a laundry list of stuff like End-to-End Data Path Protection, SmartECC, SmartFlush, GuaranteedFlush, TRIM, and SMART. The rated power consumption of OCZ's Trion 150 is 6mW sleep, 830mW idle, and 4.8W active.

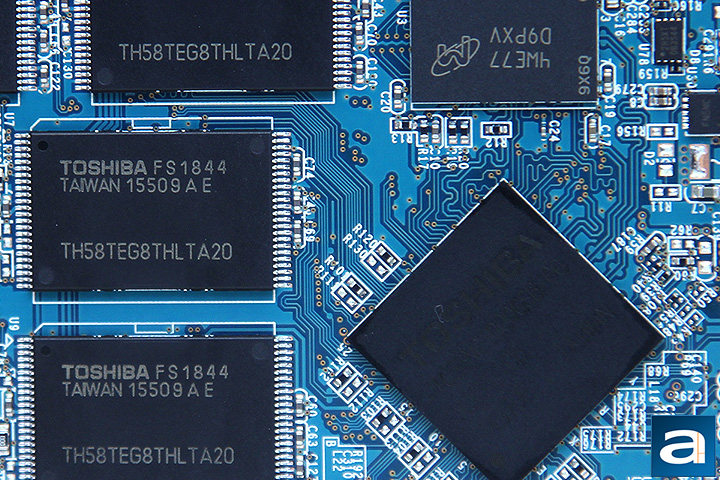

A total of sixteen NAND flash chips are found on the OCZ Trion 150 480GB solid state disk, with eight of them on each side. The chips used are Toshiba branded flash memory labeled TH58TEG8THLTA20, with a capacity of 32GB per integrated circuit chip. These are Toshiba manufactured triple-level cells manufactured on the 15nm fabrication process. Its rated write endurance is 120TB, which equates to about 65GB per day for five years. This is actually really good, considering it is more than some high end drives out there. 32GB out of the 512GB total capacity (Just under 7%) is provisioned for the drive controller for overhead, so the actual usable space is 480GB, as advertised. You will see 447GB in Windows. One Micron MT41K256M16HA-125 512MB DDR3L-1600 chip is present; used with the Toshiba TC58 controller to ensure smooth operation.

Our test configuration is as follows:

CPU: Intel Core i7-4790K @ 4.6GHz
CPU Cooling: Noctua NH-D15S
Motherboard: Gigabyte GA-Z97X-UD3H-BK
RAM: Patriot Viper 3 Low Profile PC3-17000 4x8GB
Graphics: Gigabyte G1 Gaming GeForce GTX 960 4GB
Chassis: Fractal Design Define R5
Storage: OCZ Vector 180 240GB; Crucial MX200 500GB
Power: PC Power & Cooling Silencer Mk III 1200W
Sound: Auzentech X-Fi Bravura
Optical Drive: LiteOn iHAS224-06 24X DVD Writer
Operating System: Microsoft Windows 10 Pro

Compared Hardware:
- OCZ Trion 150 480GB
- Crucial BX100 500GB
- Crucial MX100 256GB
- Crucial MX200 500GB
- G.Skill Phoenix EVO 115GB
- Kingston HyperX 3K 240GB
- Kingston HyperX 120GB
- Kingston HyperX Predator PCIe 480GB
- Kingston HyperX Savage 240GB
- Kingston SSDNow V+200 120GB
- 2x Kingston SSDNow V+200 120GB RAID 0
- OCZ ARC 100 240GB
- OCZ Agility 3 240GB
- OCZ Agility 4 256GB
- OCZ Octane 512GB
- OCZ RevoDrive 350 480GB
- OCZ Trion 100 480GB
- OCZ Vector 150 240GB
- OCZ Vector 180 240GB
- OCZ Vector 256GB
- OCZ Vertex 2 160GB 25nm
- OCZ Vertex 2 60GB 34nm
- OCZ Vertex 3 Max IOPS 240GB
- OCZ Vertex 3.20 240GB
- OCZ Vertex 4 256GB
- OCZ Vertex 450 256GB
- OCZ Vertex 460 240GB
- Patriot Blaze 240GB
- Patriot Ignite 480GB
- Patriot Pyro 120GB
- Patriot Pyro SE 240GB
- SanDisk Extreme II 240GB
- SanDisk Extreme PRO 480GB
- SanDisk Ultra II 240GB
- Silicon Power Slim S80 240GB
